Miran MLD-30M High-frequency 26GHZ Radar Level Meter for Lake Measurement
minimum order
1 piece
Quantity:
$440.00 - $440.00 / piece
- Output:4-20mA
- Communication Interface:Cable
- Theory:Radar
- Usage:Radar Liquid Level Meter
- Type:Radar Level Meter
- Mounting Type:Screw installation
- Manufacturer Part Number:MLD-30M
- Brand Name:Miran
- Description:Radar Liquid Level Meter
- Place of Origin:Guangdong, China
- Series:MLD-30M
- Features:High frequency
- Accurate:±5mm
- Measurement range:0.6m-30m
- Selling Units:Single item
- Single volume:0 cm³
- Single gross weight:0.0 kg
Products Description
The MLD series sensors from Milang Technology are high-frequency radar level transmitters with a measurement range of up to 40 meters. Featuring a further optimized antenna and a new high-speed microprocessor capable of high-speed signal analysis and processing, this radar level transmitter is suitable for complex measurement conditions such as rivers, lakes, shallow waters, solid materials, process vessels, or reactors in environments with heavy dust or prone to crystallization/condensation. The radar level sensor antenna transmits a narrow microwave pulse downward. When the microwave encounters the surface of the measured medium, it is reflected back, received again by the antenna system, and transmitted to the electronic circuitry, where it is automatically converted into a level signal (since microwaves travel at extremely high speeds, the time taken for the electromagnetic wave to reach the target, reflect, and return to the receiver is virtually instantaneous).
Product Paramenters
26GHZ Radar Level Meter | ||||||
Measuring Range | 0.6m-30m | ProcessConnection | threaded/bracket/flange | |||
ProcessTemperature | -40~85℃ | Process Pressure | atmospheric | |||
Protection Class | IP67 | Frequency Range | 26GHZ | |||
Near-end Blind Spot | 600mm | On-site Display | optional (monitor) | |||
Housings | aluminum/304 stainless steel | |||||
Accurate | ±5mm (range 10m); ±10mm (range 30m) | |||||
Power Supply | DC (12-24V) 4-wire / DC 24V 2-wire | |||||
Signal Output | Modbus RTU protocol (12~24V DC) or 4-20mA/Hart 2-wire (24V DC | |||||
Details Images
Company Profile
Company Profile
projects are listed demonstration project of one-stop application plan for high-precision sensors of Ministry of Industry and Information Technology of China. MIRAN Technology is also the State-level “little giants” enterprise-specialized and sophisticated enterprises that produce new and unique products, State-level high-tech enterprise.
Our development direction is: technology innovation as the core, customer demand as the guidance, we will always be committed to providing customers with one-stop solutions for products and services in the fields of measurement and control, such as displacement, liquid level, material level, angle, inclination, pressure and also the display controller instruments.
MIRAN Technology has two companies, Shenzhen Miran Technology Co., Ltd and Hubei Miran Technology Co., Ltd. Shenzhen Miran Technology Co., Ltd was founded in 2003, set up in the core area of Guangming District, Shenzhen. In our factory we have the engineering department, R&D center, manufacturing department, testing center, after-sales service department, marketing department. We also have many direct sales offices, agents and distributors. All of these ensure us could provide thoughtful and timely service to our customers. Miran company has more than 20 years experience of
research and development, production and operation, now has become a mature technology manufacturers that with many high-tech personnel and advanced equipment and dozens of patents sensor and lubricating system. “MIRAN” brand series of products have been widely used for many kinds of machinery and equipment, automation control, Internet of Things and other measurement and control field. At present, there are hundreds of thousands displacement sensors are sold around the world every year.
Our main products are: Potentiometer/resistive displacement sensor (electronic ruler), draw wire displacement sensor, magnetostrictive displacement sensor, magnetostrictive liquid level sensor (level gauge measurement and control system), and hall magnetically sensitive non-contact angle sensor and supporting V/A conversion module, LVDT displacement sensor, inductive frequency modulation displacement sensor, gap displacement sensor, vibrating wire crack meter, eddy current displacement sensor, ultrasonic sensor, radar-type level meters, hydrostatic level, magnetic grid sensor, tilt sensor, inclinometer, display controller, intelligent inclinometer, three-pulley tension sensor, wheel load cell
sensor, wireless transmission module, display controller and related application products. Also include the automatic/semi-automatic lubricating oil pump and its accessories.
sensor, wireless transmission module, display controller and related application products. Also include the automatic/semi-automatic lubricating oil pump and its accessories.

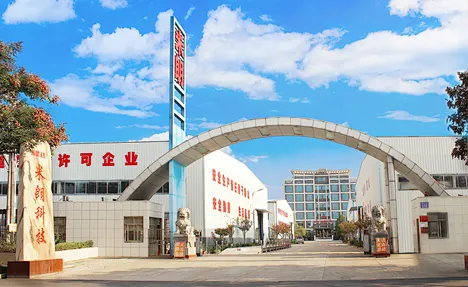

In order to meet the growing needs of customers, our company increased investment and set up the Miran Industrial Park with a total area of more than 50 acres in 2007. We established the Hubei Miran Technology Co., Ltd(Zaoyang City Miran Science & Techology Co.Ltd). The planned modern workshop covers an area of 200,000 square meters and has been built 60,000 square meters, the introduction modern manufacturing and testing equipment more than 3,000 sets.Beautiful environment,standardized plant, sophisticated intelligent equipment, perfect production line provide the basis for product quality and large-scale mass production. The industrial park has the R&D center, mold workshop, CNC machining workshop, printing production line, dust-free workshop, production and assembly workshop, testing room and so on.
Each product is produced with professional production, testing process, to ensure the quality of
the product .
Each product is produced with professional production, testing process, to ensure the quality of
the product .
The company has strong technical reserves, standardized management, pay attention to intellectual property protection, and has obtained 92 patents that related to sensor inventions and utility models. Among them, there are 20 invention patents, and the reserve of technical force has cultivated new growth points for the strategic development of enterprises. Site management is quality assurance to customers. The company increase on-site management efforts to provide high-quality products for customers, and create a good production environment for employees. The company has obtained ISO9001 International Quality System Certification. All the design and production is according to the international quality certification standards.MIRAN series of products won the famous trademark of Hubei Province. The company won
Hubei Province “Contract and Keeping Promises” enterprises.
Hubei Province “Contract and Keeping Promises” enterprises.
The company increased the information construction,keep up with the pace of the times, and increase training of Internet talents to promote the MIRAN products and talent quality always in a leading position in the world. After more than 20 years of technological precipitation and innovation, more than 20 years of market verification, many MIRAN product’s performance has surpassed foreign brands in many aspects and has won a number of national utility model patent
certificates. MIRAN has cast the position of the leader of the domestic displacement sensor
industry with its strength. In the present world, science and technology are advancing by leaps and bounds, but we
strive for excellence, strive to do well in our own professional field of products. We operate with integrity, and constantly explore advanced ideas. We would like to do our best to contribute a little to achieve the goal of the realization of made in China to the world and help the China’s economy keep moving for ward.
certificates. MIRAN has cast the position of the leader of the domestic displacement sensor
industry with its strength. In the present world, science and technology are advancing by leaps and bounds, but we
strive for excellence, strive to do well in our own professional field of products. We operate with integrity, and constantly explore advanced ideas. We would like to do our best to contribute a little to achieve the goal of the realization of made in China to the world and help the China’s economy keep moving for ward.
