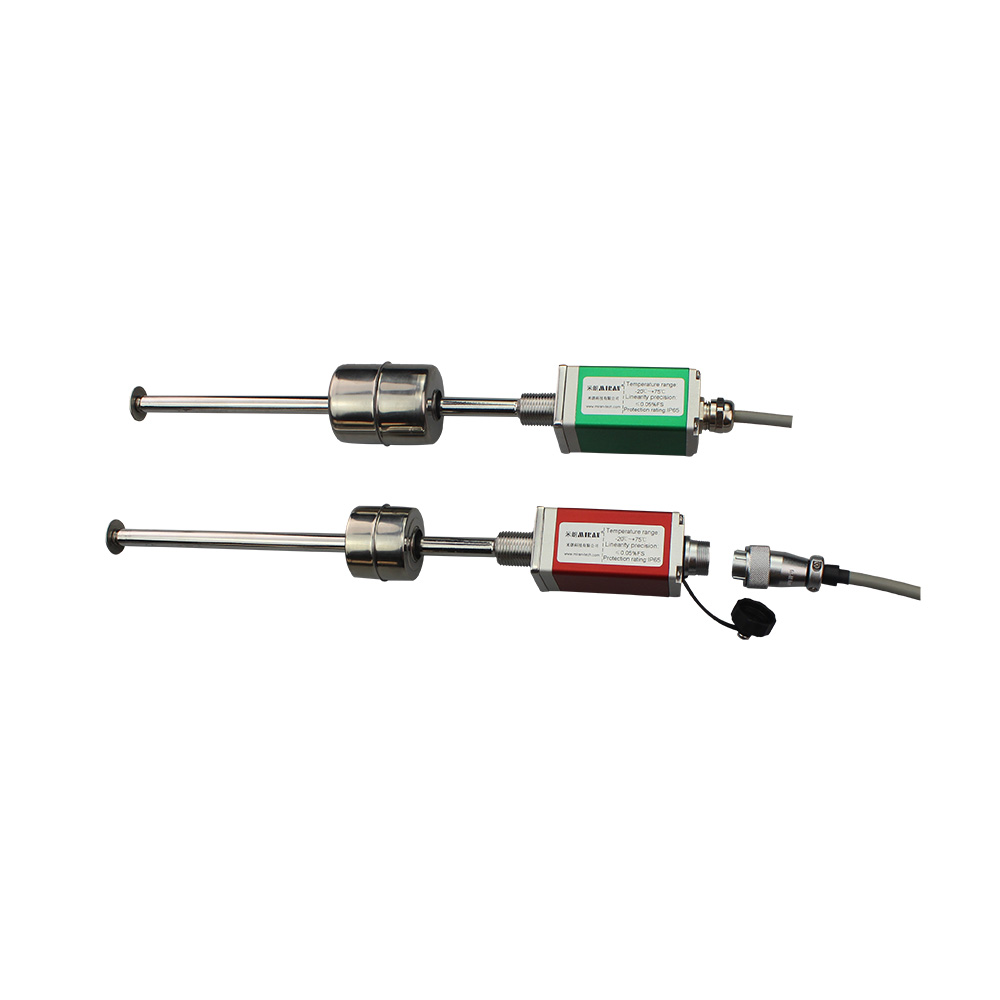

MIRAN MTL7 High Resolution Magnetostrictive Displacement Sensor Linear Position Sensor with 4-20mA Output
minimum order
1 piece
Quantity:
$286.00 - $703.00 / piece
- Linearity:±0.1%
- Output:Analog
- Communication Interface:Cable
- Usage:Displacement measurement
- Type:Magnetostrictive Displacement Sensor
- Mounting Type:Bracket installation
- Manufacturer Part Number:MTL7
- Brand Name:MIRAN
- Voltage - Supply:≤36V DC
- Description:Magnetostrictive Displacement Sensor
- Place of Origin:Guangdong, China
- Series:MTL7
- Features:High precision and accuracy
- Material:Aluminum
- Shell protection grade:P65,IP67
- Measuring range:50-5000mm
- Selling Units:Single item
- Single volume:0 cm³
- Single gross weight:0.0 kg
Products Description

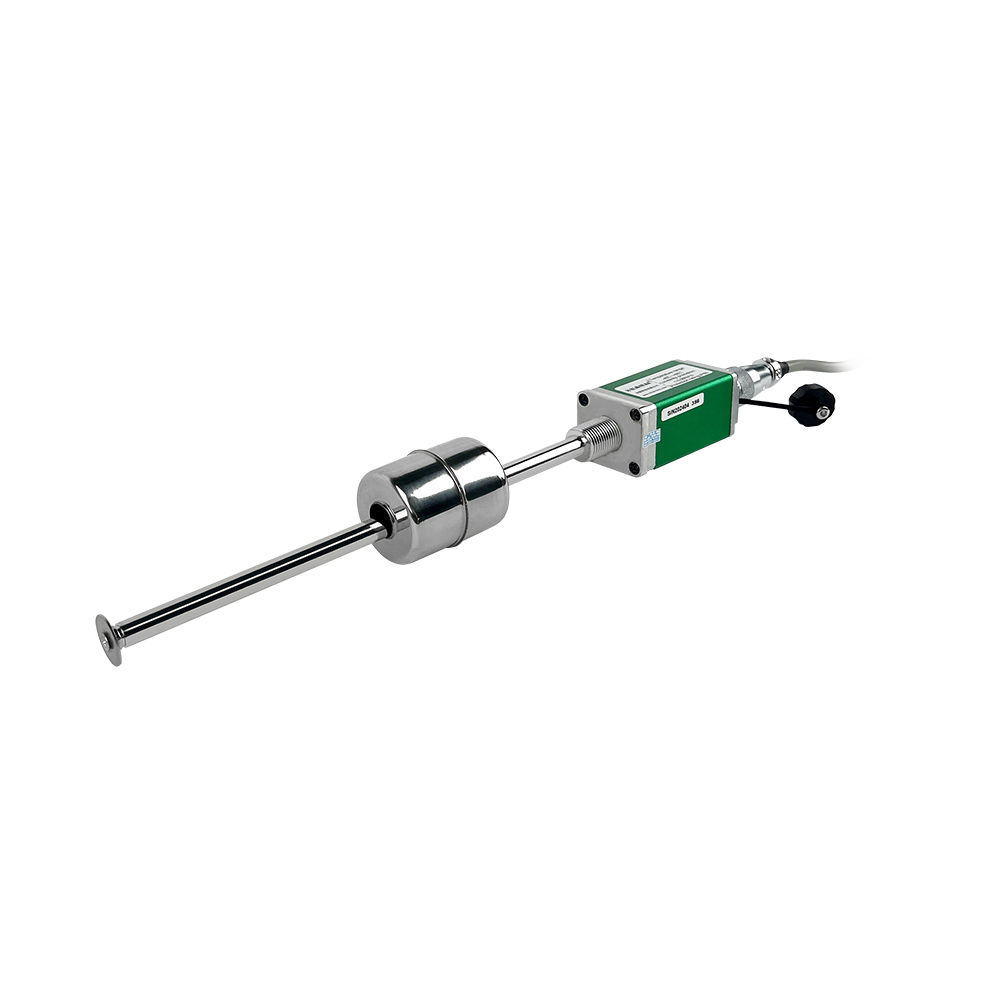

The principle of the MTL7 magnetostrictive level sensor involves generating a strain pulse signal when two distinct magnetic fields intersect. The time required to detect this signal is then calculated to determine the precise position. One magnetic field originates from a permanent magnet within the magnetic ring, while the other stems from excitation pulses generated by electronic components in the sensor's electronics compartment. These excitation pulses travel at the speed of sound along the waveguide wire, which is manufactured from magnetostrictive material within the sensor. When intersecting the permanent magnetic field within the magnetic ring, the mechanical vibration generated in the waveguide wire due to the magnetostrictive effect forms a strain pulse. This strain pulse is rapidly detected by the sensing circuitry within the electronics compartment. By multiplying the total time from the generation of the excitation pulse to the detection of the strain pulse by a fixed sound velocity, the MTL7 magnetostrictive level sensor precisely calculates the positional change of the magnet. This process is continuous, enabling rapid measurement of the new position whenever the magnetic ring shifts. Since the output signal represents the true value—not a proportional signal requiring amplification or processing—there is no signal drift or variation. Unlike other sensors, it never requires periodic recalibration.

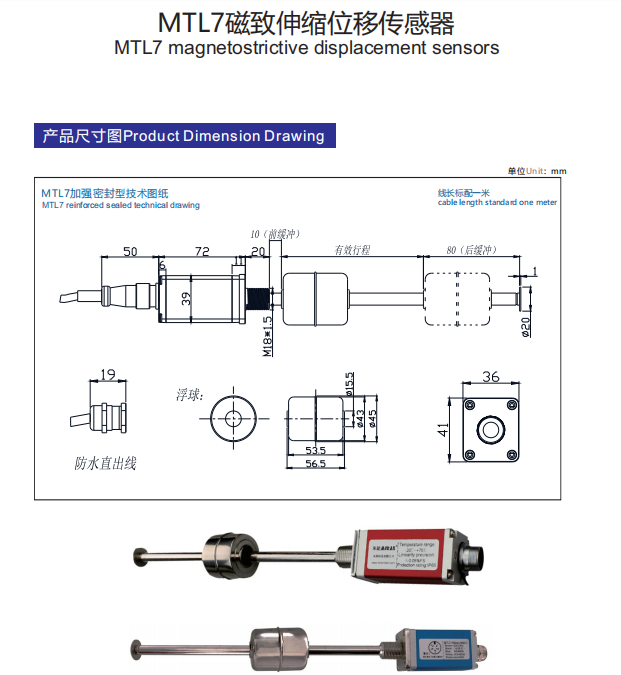

Product Paramenters

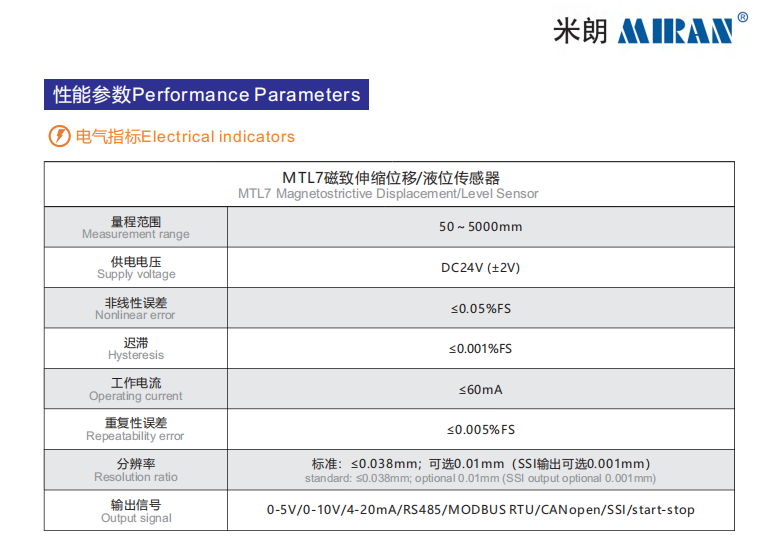

MTL7 Magnetostrictive Displacement/Level Sensor | ||
Measurement range | 50～5000mm | |
Supply voltage | DC24V (±2V) | |
Nonlinear error | ≤0.05%FS | |
Hysteresis | ≤0.001%F | |
Operating current | ≤60mA | |
Repeatability error | ≤0.005%FS | |
Resolution ratio | standard: ≤0.038mm; optional 0.01mm (SSI output optional 0.001mm) | |
Output signa | 0-5V/0-10V/4-20mA/RS485/MODBUS RTU/CANopen/SSI/start-stop | |

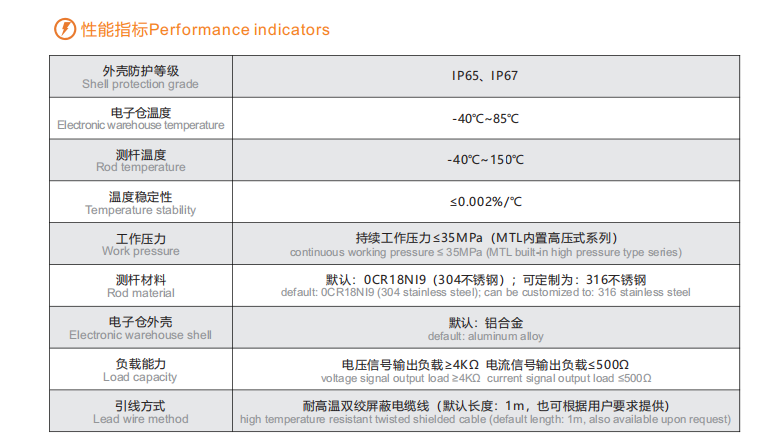

Shell protection grade | IP65、IP67 | |
Electronic warehouse temperature | -40℃~85℃ | |
Rod temperature | -40℃~150℃ | |
Work pressure | continuous working pressure ≤ 35MPa (MTL built-in high pressure type series) | |
Rod material | default: 0CR18NI9 (304 stainless steel); can be customized to: 316 stainless steel | |
Electronic warehouse shell | default: aluminum alloy | |
Load capacity | voltage signal output load ≥4KΩ current signal output load ≤500Ω | |
Lead wire method | high temperature resistant twisted shielded cable (default length: 1m, also available upon request) | |
Application:Servo hydraulic cylinder piston position presetting and feedback, servo pneumatic cylinder piston position presetting and feedback, grinding machinery position presetting and feedback, casting and forging machine tool position presetting and feedback,other machinery such as gantry machine tool position presetting and feedback, shield tunneling machines, shield machines, coal mining machinery cylinder position presetting and feedback, engineering hoisting machinery cylinder position presetting and feedback, steel mill machinery cylinder position presetting and feedback (e.g., rolling mills), bottle-blowing machine cylinder position presetting and feedback, injection molding machinery cylinder position presetting and feedback, railway and bridge adjustment, water level detection and sluice gate control, woodworking machinery position preset and feedback, hydraulic cylinder liquid level position preset and feedback, chemical tank liquid level position preset and feedback, drinking water and wastewater treatment systems, geodetic surveying systems, gate opening position preset and feedback, and hydraulic cylinder liquid level measurement. | ||
