Miran LVDT Sensor LVDT8 Pen Displacement Transducer Mini LVDT Position Sensor for Shaft Diameter Runout Detection

minimum order
1 piece
Quantity:
$169.00 - $245.00 / piece
Contact Now
add to cart
  • Linearity:±0.1%
  • Output:Analog
  • Communication Interface:Cable
  • Theory:LVDT Sensor
  • Usage:Crack measuring
  • Type:Linear Displacement Sensor
  • Mounting Type:Bracket installation
  • Manufacturer Part Number:LVDT8
  • Brand Name:MIRAN
  • Voltage - Supply:≤36V DC
  • Linear Range:0.1%
  • Description:LVDT8 LInear Position Sensor
  • Place of Origin:Guangdong, China
  • Series:LVDT8
  • Features:High precision and accuracy
  • Rotation Angle - Electrical, Mechanical:High precision machine
  • Material:stainless steel
  • Selling Units:Single item
  • Single package size:30X10X10 cm
  • Single gross weight:1.0 kg

Products Description


LVDT8 is a variable-reluctance device, widely used in machine tools position,hydraulic cylinder position,cement industry,aerospace, machinery, building, textile, railway, coal, metallurgy, plastics, chemical industry and scientific research institutions, structural movement in bridges,valve position detection and control,tunnels protection,etc., used to measure the elongation, vibration, the thickness of the object, inflation and other high-tech products.

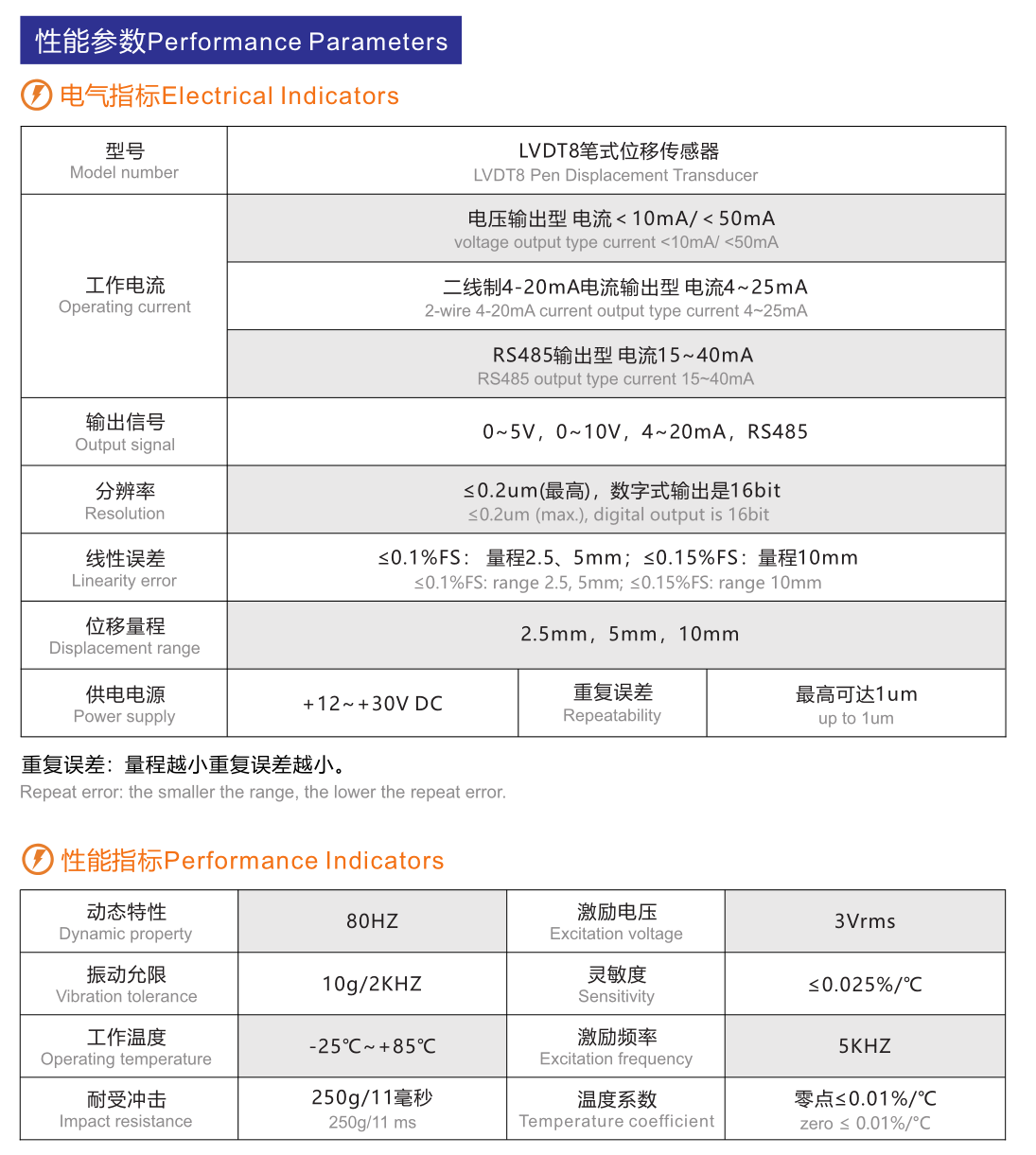

Product Paramenters

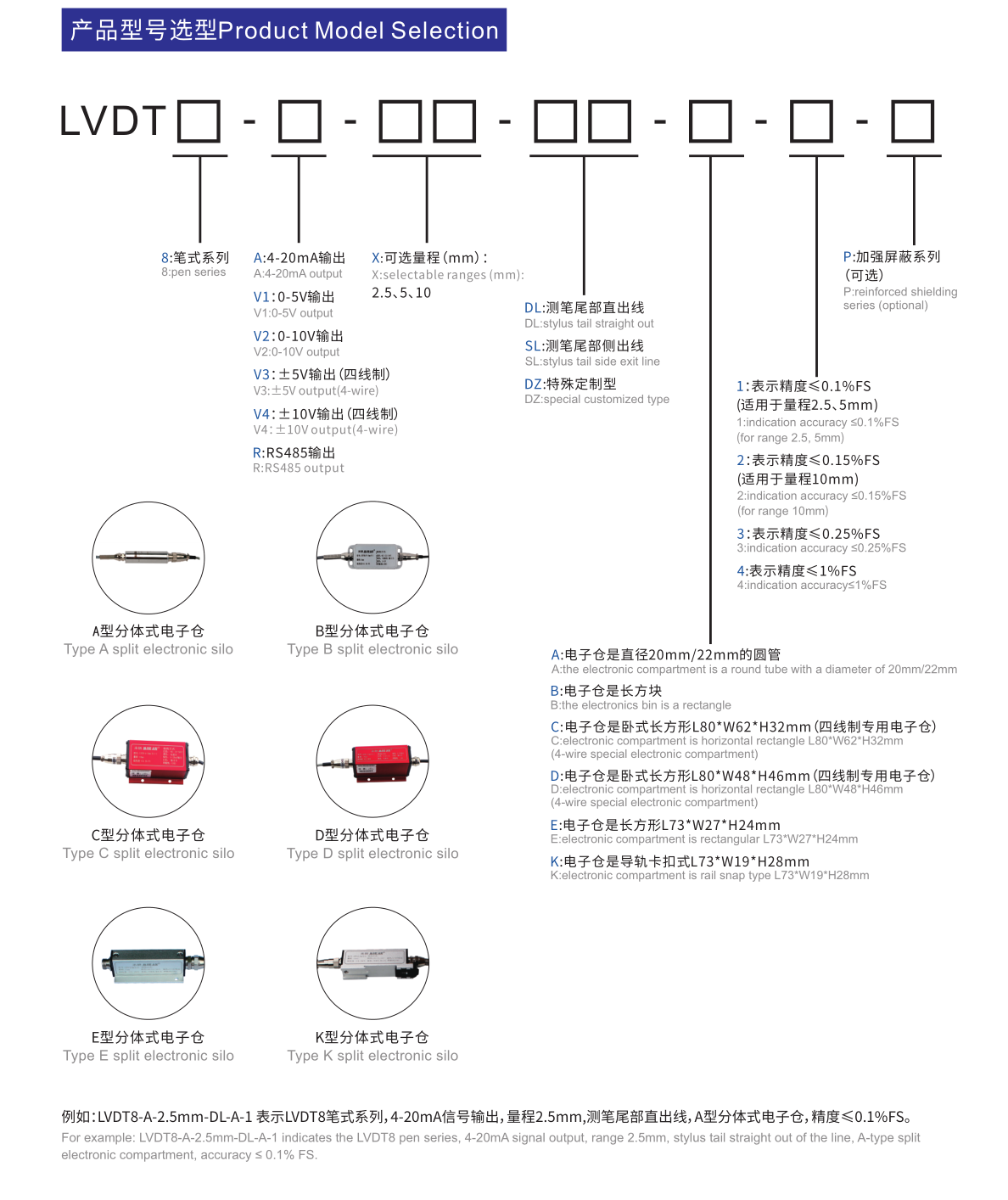

Model number
LVDT8 Pen Displacement Transducer

Operating current
voltage output type current
2-wire 4-20mA current output type current 4~25mA
RS485 output type current 15~40mA
Displacement range
2.5mm,5mm,10mm
Output signal
0～5V, 0～10V,4～20mA，RS485
Resolution
≤0.2um (max.), digital output is 16bit
Linearity error
≤0.1%FS: range 2.5, 5mm; ≤0.15%FS: range 10mm
Repetitive error
up to 1um
Power supply
+12～30V DC
Dynamic property
80HZ
Vibration tolerance
10g/2KHZ
Impact resistance
250g/11 ms
Excitation voltage
3Vrms
Excitation frequency
5KHZ
Temperature coefficient
Zero ≤0.01%/℃
Sensitivity
≤0.025%/℃
Operating temperature
25℃～+85℃

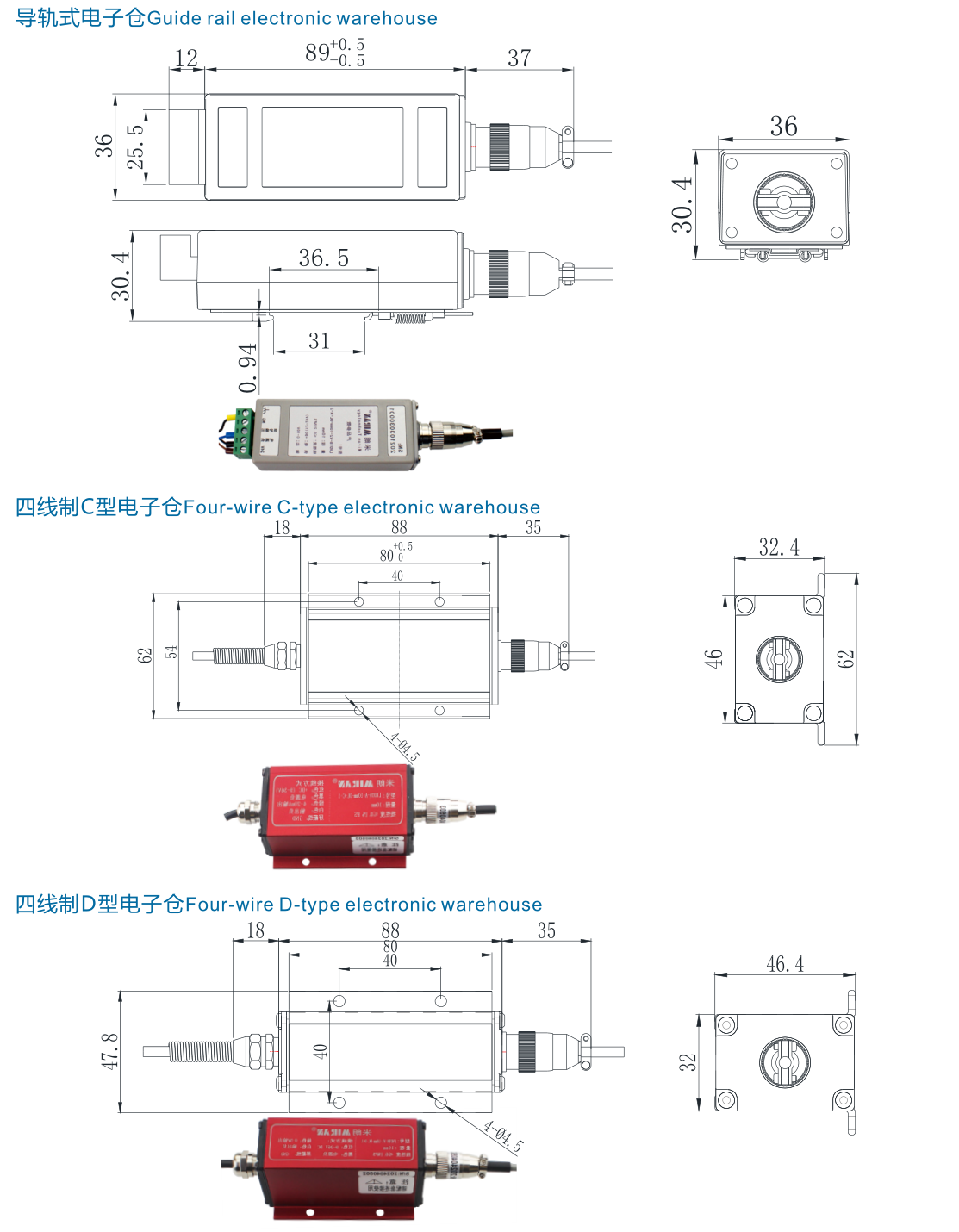

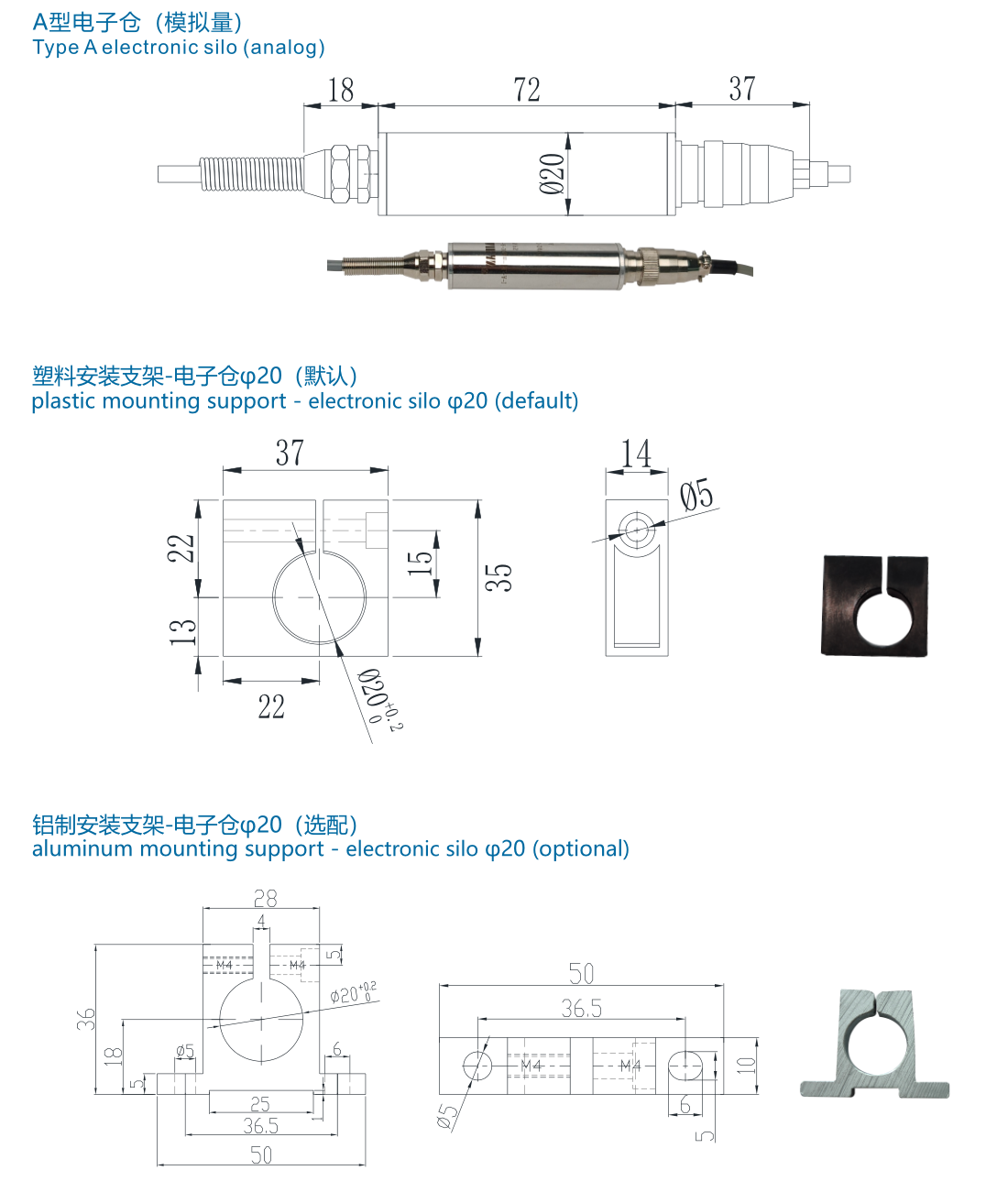

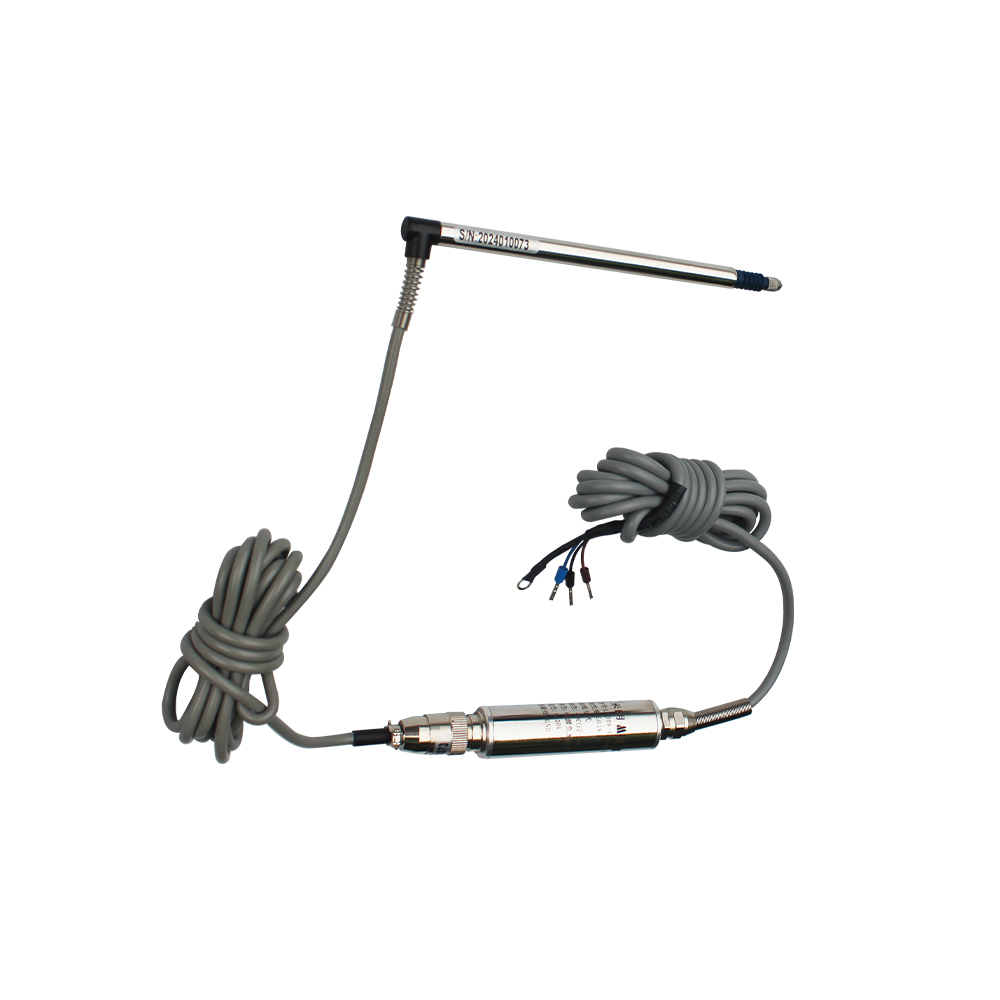

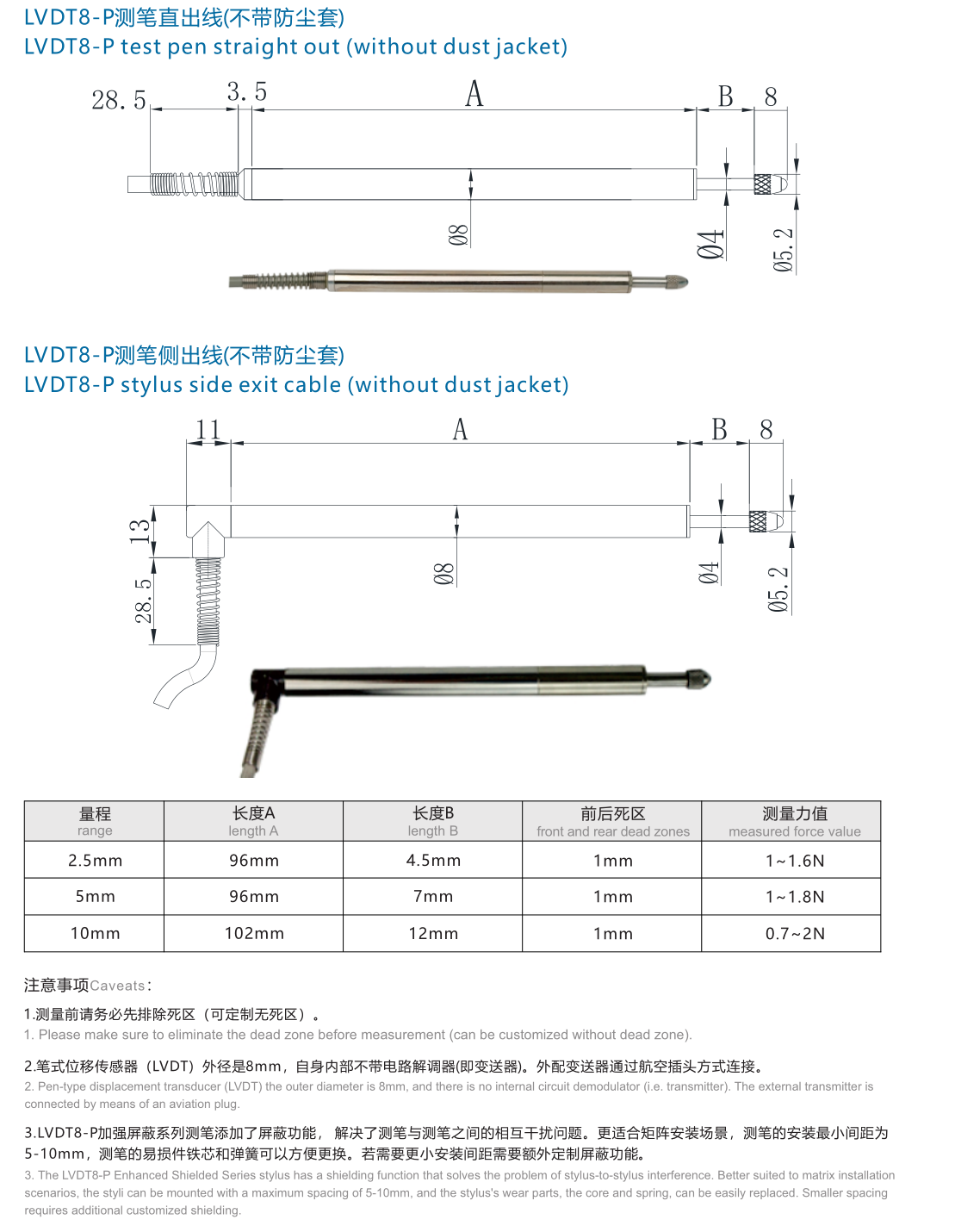

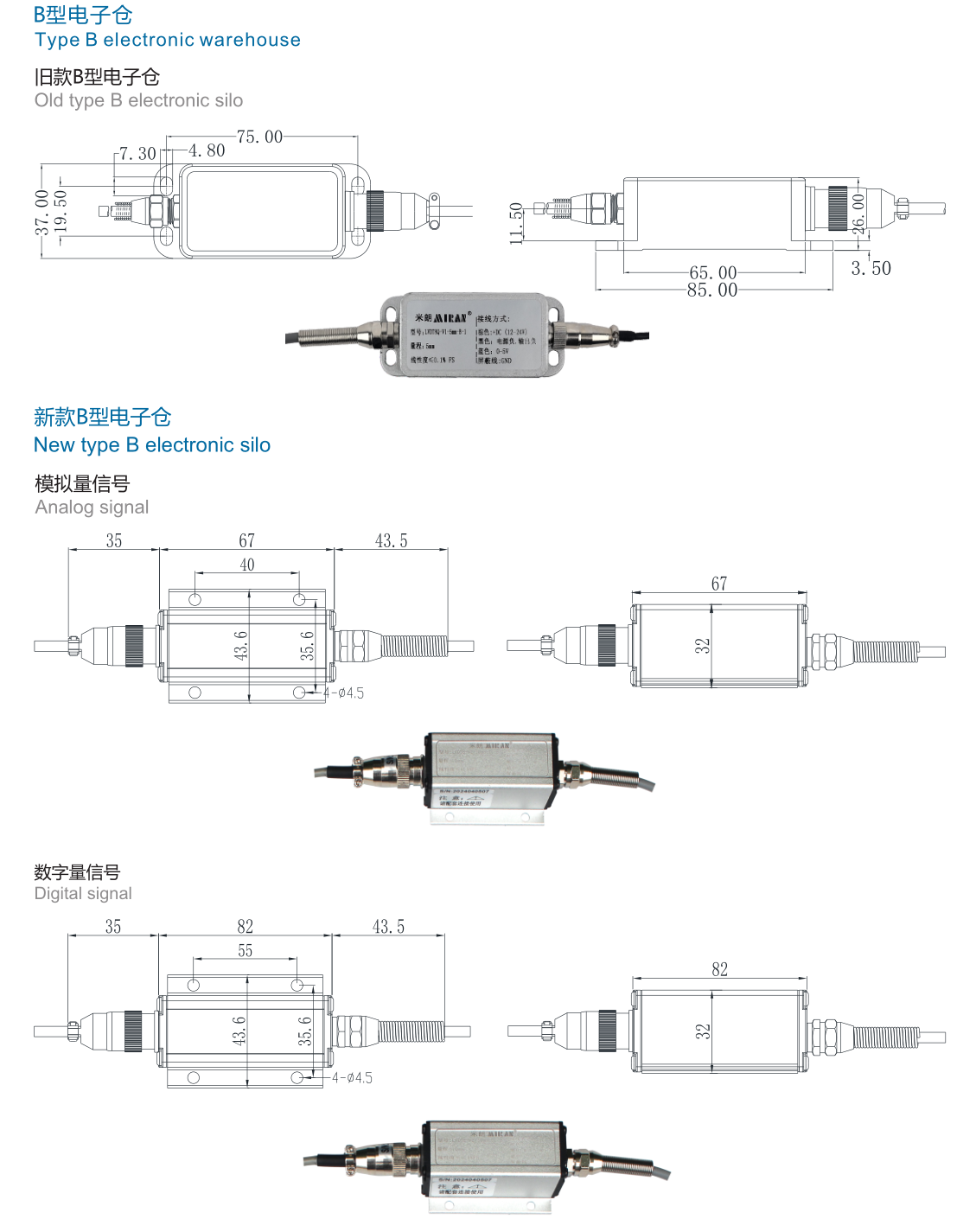

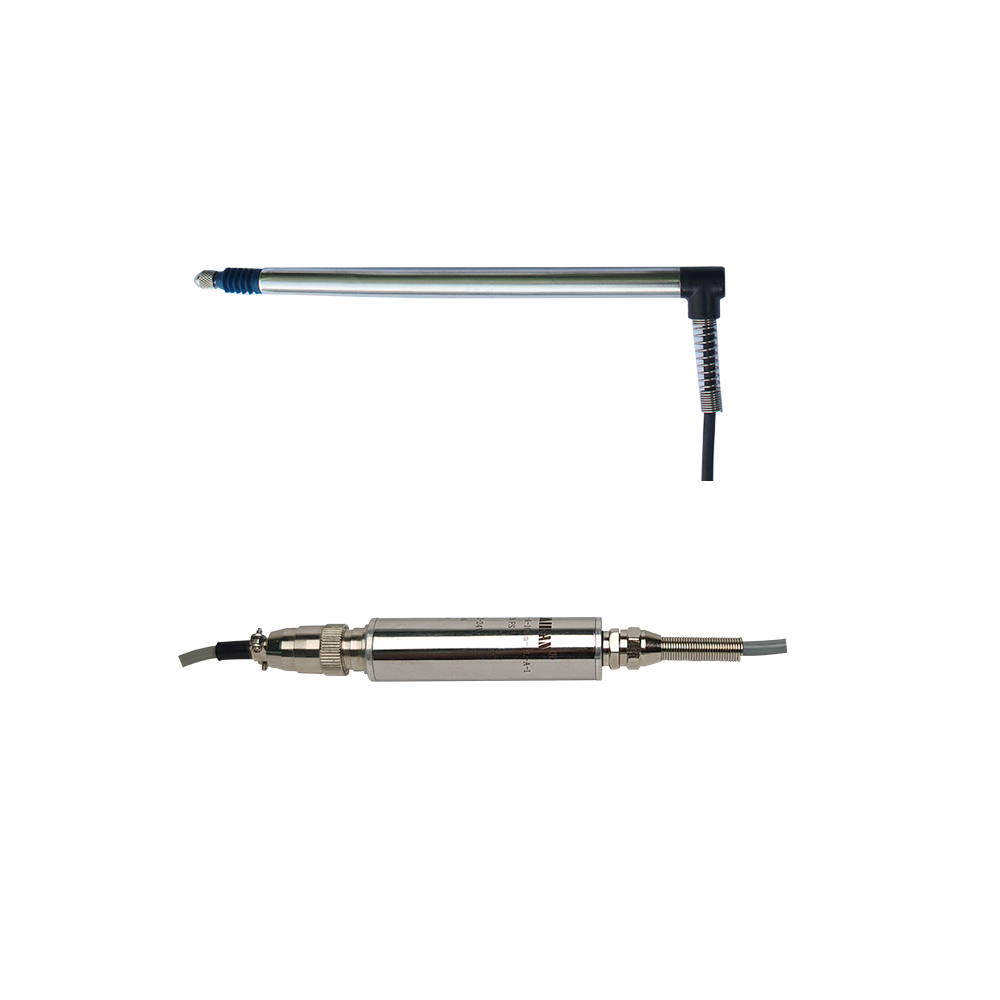

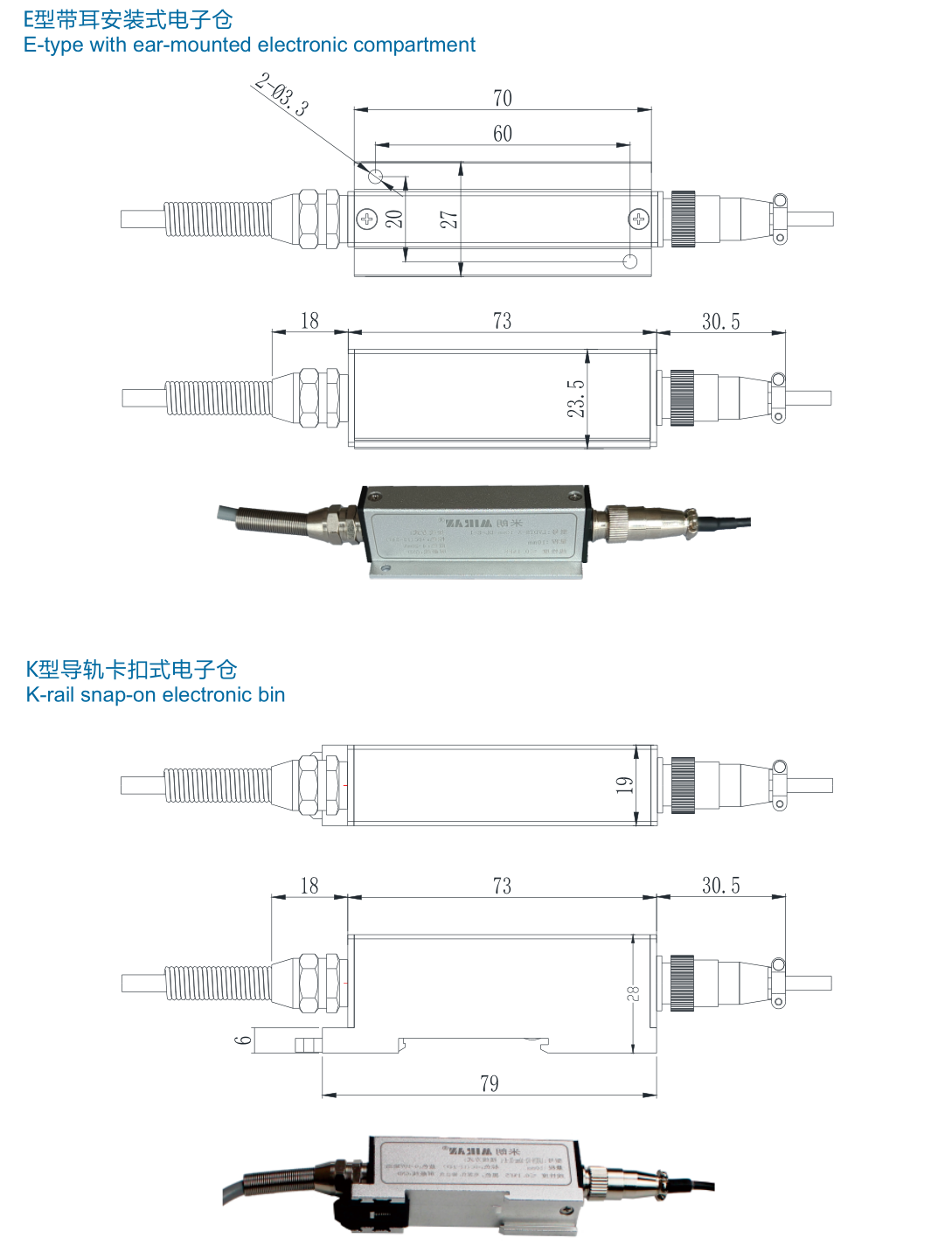

Details Images


















Company Profile






Company Profile

Miran Technology Co.,Ltd is located at the front place in Chinese Economic Reform -- Guangming District, Shenzhen. Miran is High-tech enterprises which is recognized by Shenzhen municipal government, and won the National High-tech Enterprise Certification. Since the company founded in 2003, we are committed to the design, development, production and sales of displacement sensors. Our 20 years rich experience have made MIRAN the experts in sensors. MIRAN products have been listed as the key product by the Ministry of Industry and Information Technology of the People’s Republic of China and the company is rated as one-stop application plan demonstration enterprise. The company’s sensor
projects are listed demonstration project of one-stop application plan for high-precision sensors of Ministry of Industry and Information Technology of China. MIRAN Technology is also the State-level “little giants” enterprise-specialized and sophisticated enterprises that produce new and unique products, State-level high-tech enterprise.

Our development direction is: technology innovation as the core, customer demand as the guidance, we will always be committed to providing customers with one-stop solutions for products and services in the fields of measurement and control, such as displacement, liquid level, material level, angle, inclination, pressure and also the display controller instruments.

MIRAN Technology has two companies, Shenzhen Miran Technology Co., Ltd and Hubei Miran Technology Co., Ltd. Shenzhen Miran Technology Co., Ltd was founded in 2003, set up in the core area of Guangming District, Shenzhen. In our factory we have the engineering department, R&D center, manufacturing department, testing center, after-sales service department, marketing department. We also have many direct sales offices, agents and distributors. All of these ensure us could provide thoughtful and timely service to our customers. Miran company has more than 20 years experience of
research and development, production and operation, now has become a mature technology manufacturers that with many high-tech personnel and advanced equipment and dozens of patents sensor and lubricating system. “MIRAN” brand series of products have been widely used for many kinds of machinery and equipment, automation control, Internet of Things and other measurement and control field. At present, there are hundreds of thousands displacement sensors are sold around the world every year.

Our main products are: Potentiometer/resistive displacement sensor (electronic ruler), draw wire displacement sensor, magnetostrictive displacement sensor, magnetostrictive liquid level sensor (level gauge measurement and control system), and hall magnetically sensitive non-contact angle sensor and supporting V/A conversion module, LVDT displacement sensor, inductive frequency modulation displacement sensor, gap displacement sensor, vibrating wire crack meter, eddy current displacement sensor, ultrasonic sensor, radar-type level meters, hydrostatic level, magnetic grid sensor, tilt sensor, inclinometer, display controller, intelligent inclinometer, three-pulley tension sensor, wheel load cell
sensor, wireless transmission module, display controller and related application products. Also include the automatic/semi-automatic lubricating oil pump and its accessories.

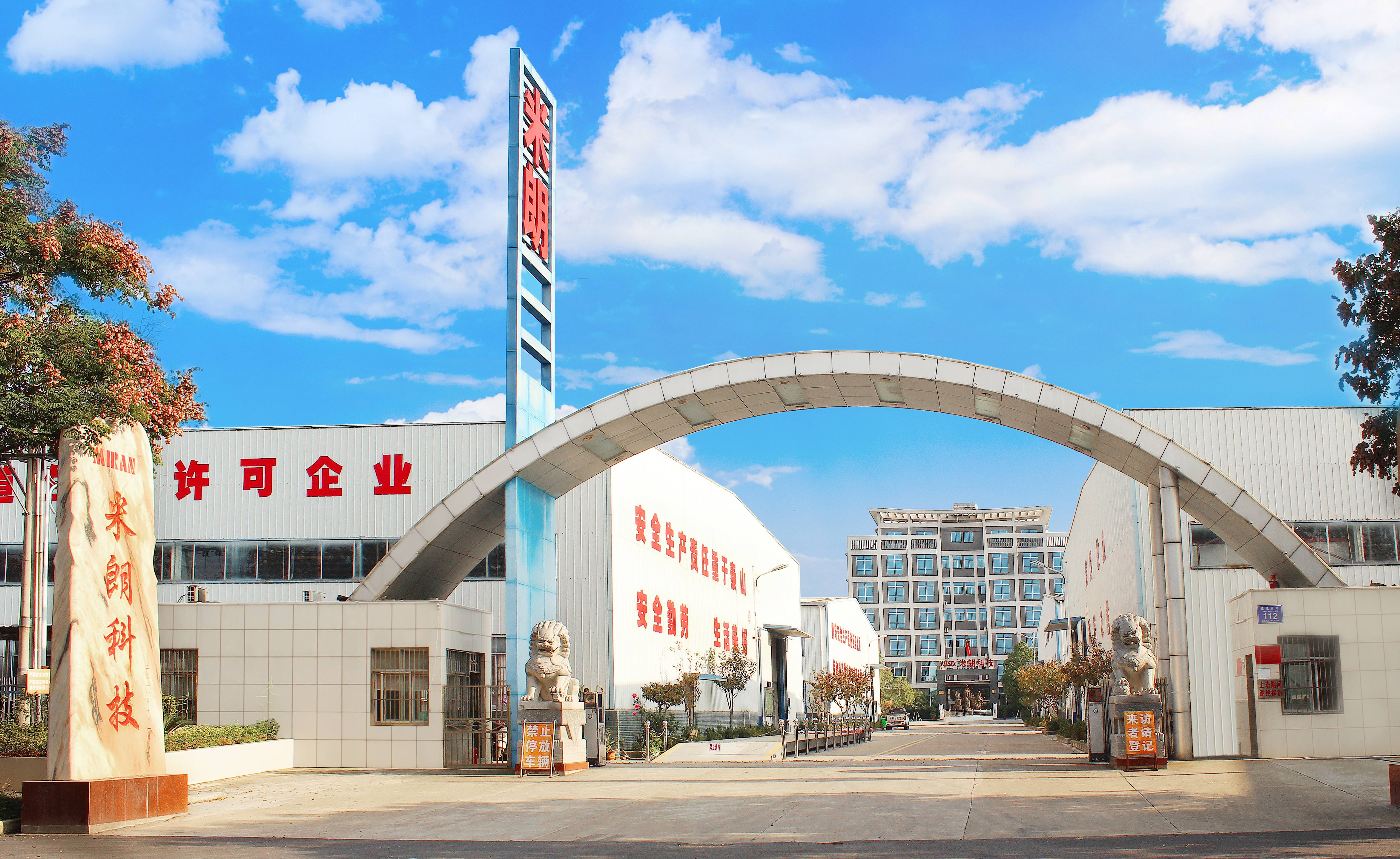

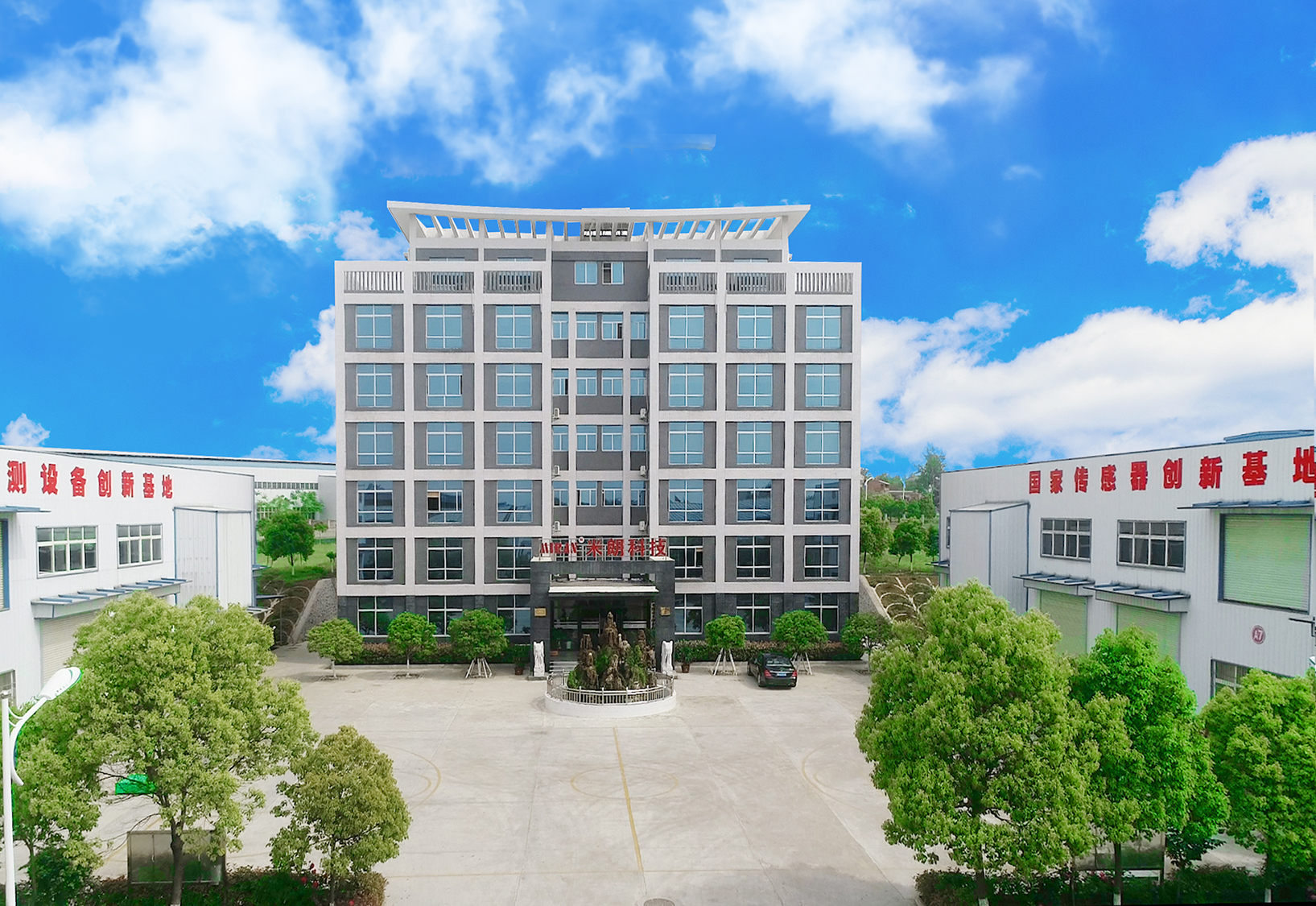

In order to meet the growing needs of customers, our company increased investment and set up the Miran Industrial Park with a total area of more than 50 acres in 2007. We established the Hubei Miran Technology Co., Ltd(Zaoyang City Miran Science & Techology Co.Ltd). The planned modern workshop covers an area of 200,000 square meters and has been built 60,000 square meters, the introduction modern manufacturing and testing equipment more than 3,000 sets.Beautiful environment,standardized plant, sophisticated intelligent equipment, perfect production line provide the basis for product quality and large-scale mass production. The industrial park has the R&D center, mold workshop, CNC machining workshop, printing production line, dust-free workshop, production and assembly workshop, testing room and so on.
Each product is produced with professional production, testing process, to ensure the quality of
the product .

The company has strong technical reserves, standardized management, pay attention to intellectual property protection, and has obtained 92 patents that related to sensor inventions and utility models. Among them, there are 20 invention patents, and the reserve of technical force has cultivated new growth points for the strategic development of enterprises. Site management is quality assurance to customers. The company increase on-site management efforts to provide high-quality products for customers, and create a good production environment for employees. The company has obtained ISO9001 International Quality System Certification. All the design and production is according to the international quality certification standards.MIRAN series of products won the famous trademark of Hubei Province. The company won
Hubei Province “Contract and Keeping Promises” enterprises.

The company increased the information construction,keep up with the pace of the times, and increase training of Internet talents to promote the MIRAN products and talent quality always in a leading position in the world. After more than 20 years of technological precipitation and innovation, more than 20 years of market verification, many MIRAN product’s performance has surpassed foreign brands in many aspects and has won a number of national utility model patent
certificates. MIRAN has cast the position of the leader of the domestic displacement sensor
industry with its strength. In the present world, science and technology are advancing by leaps and bounds, but we
strive for excellence, strive to do well in our own professional field of products. We operate with integrity, and constantly explore advanced ideas. We would like to do our best to contribute a little to achieve the goal of the realization of made in China to the world and help the China’s economy keep moving for ward.



Recommend Products

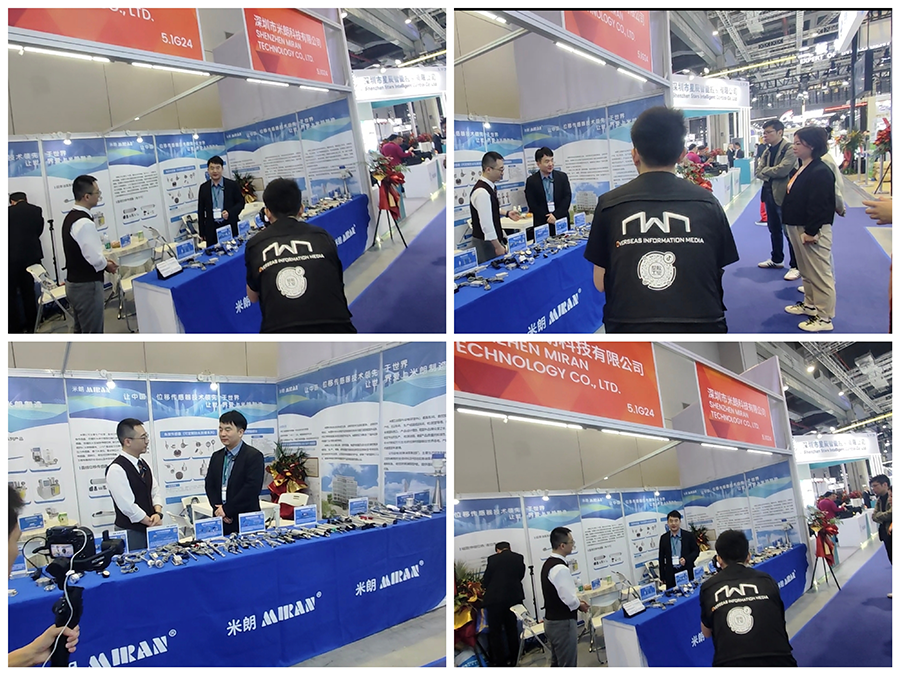

Exhibition

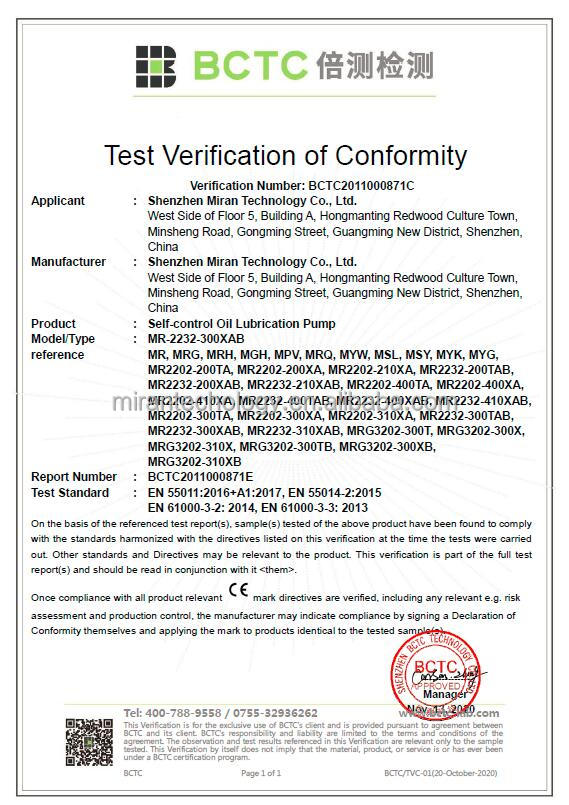

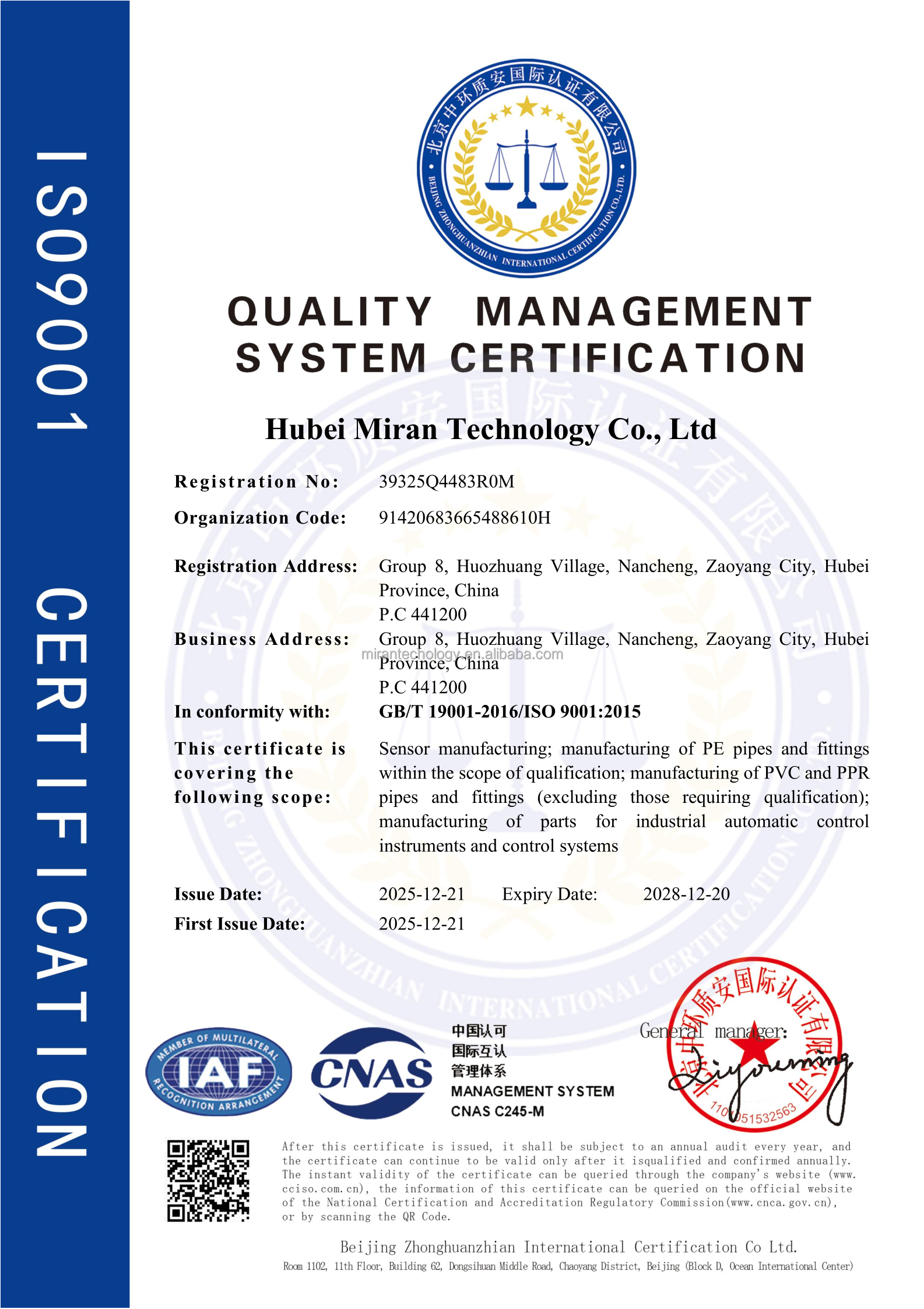

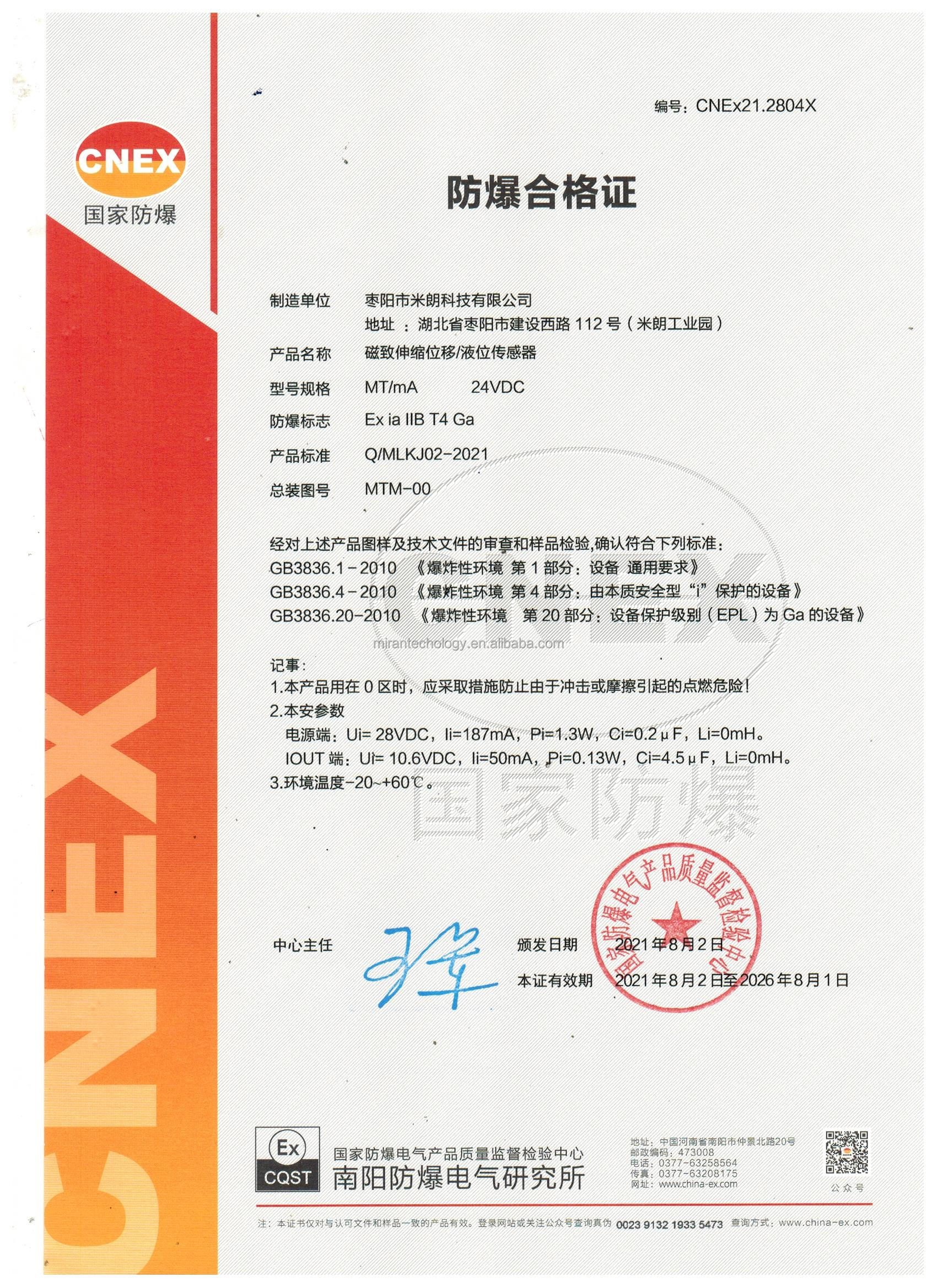

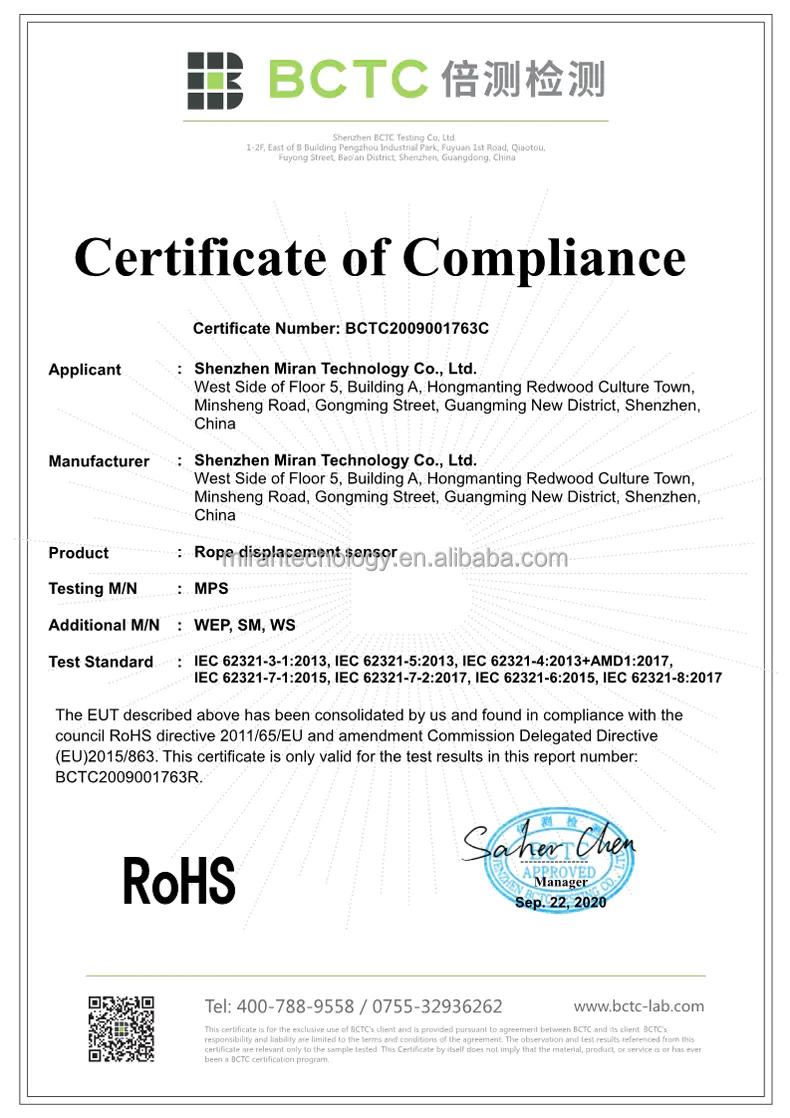

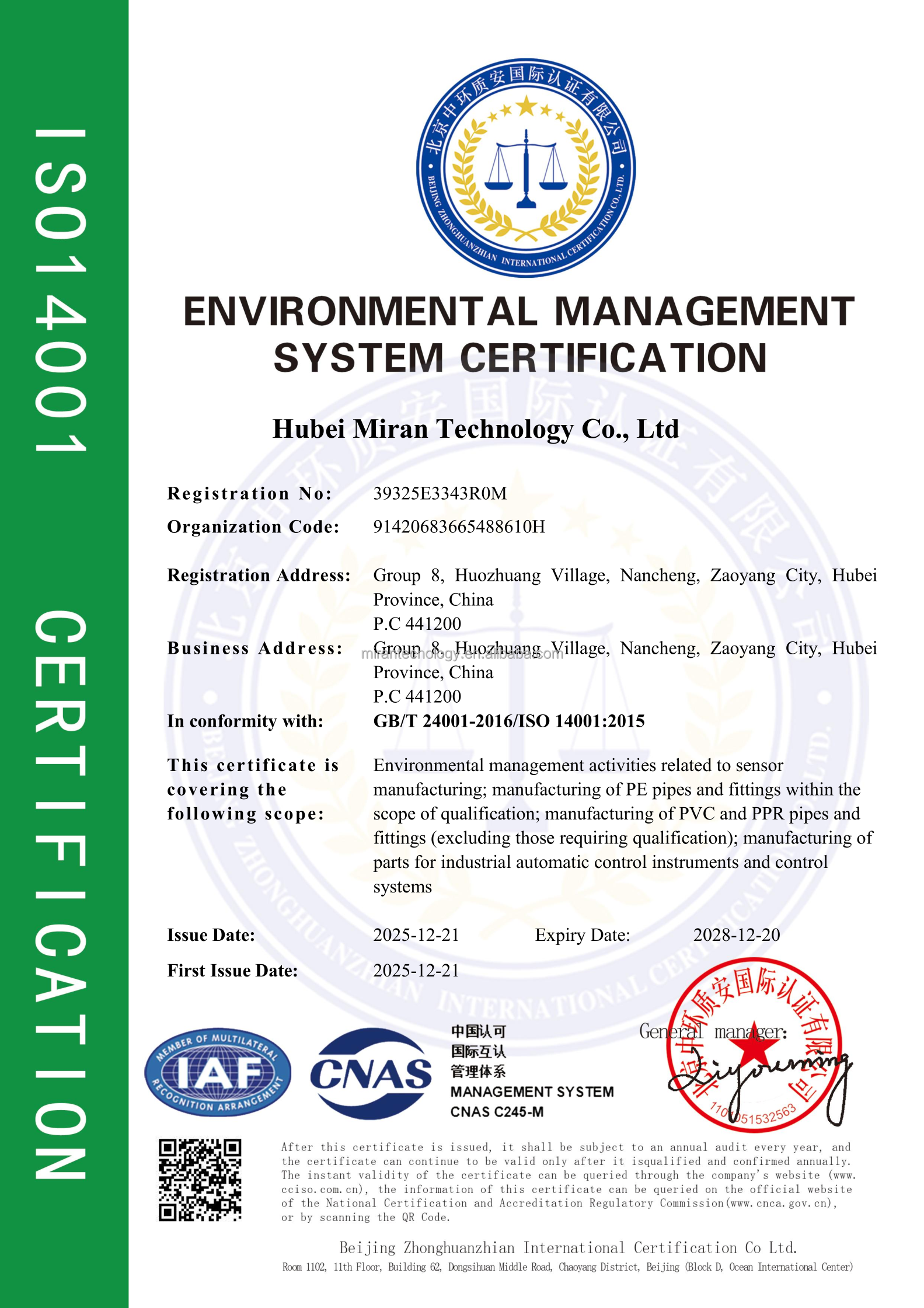

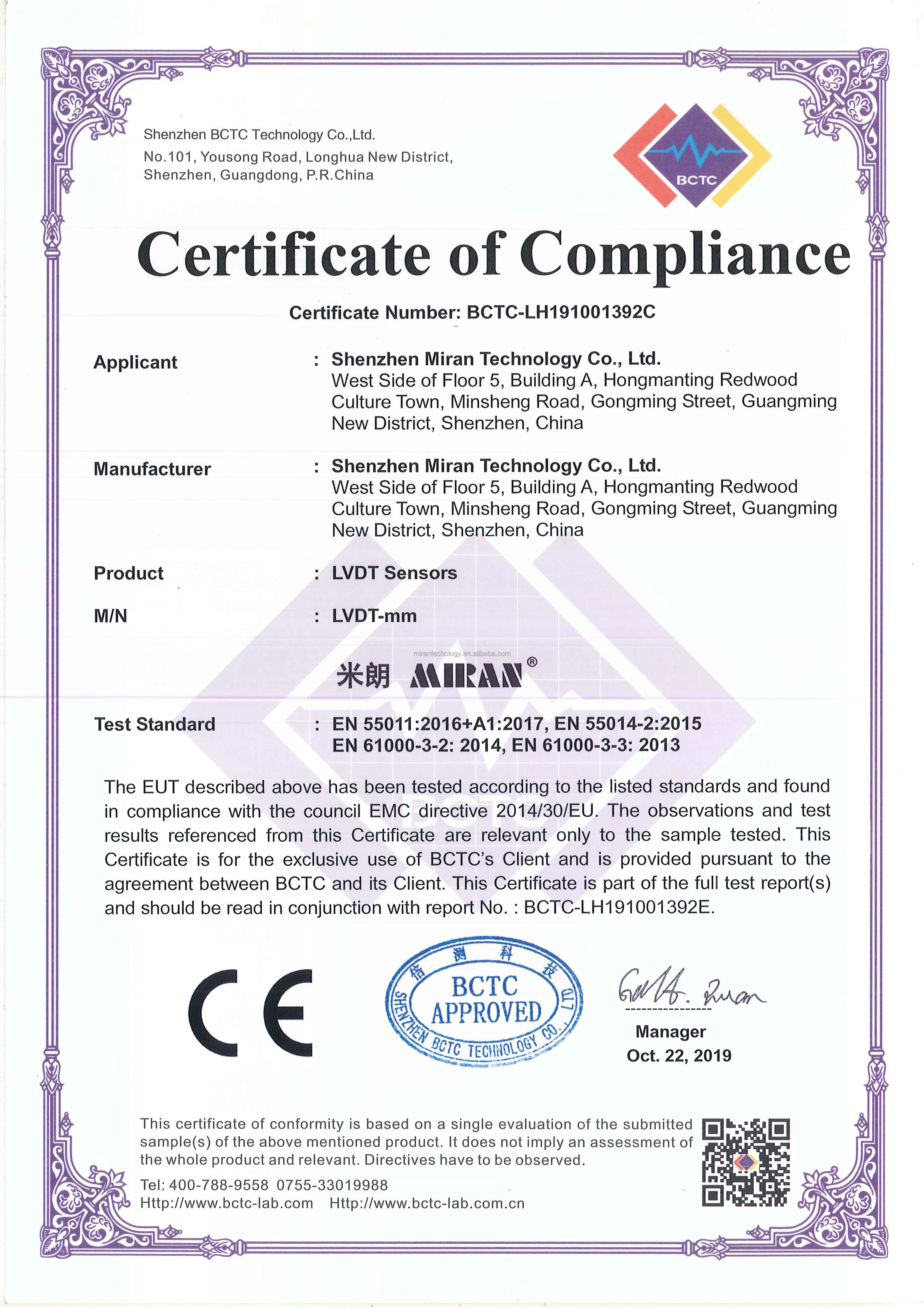

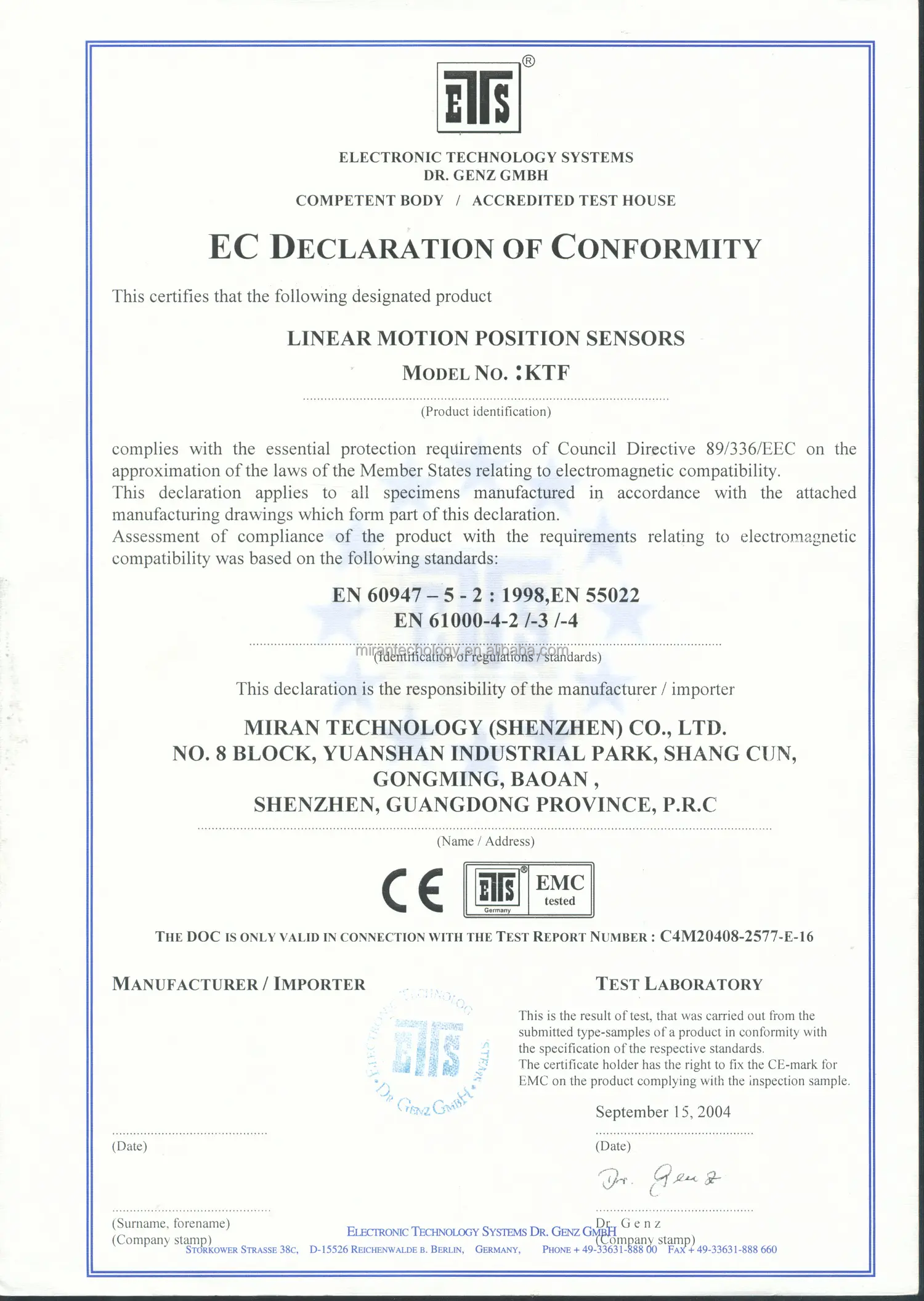

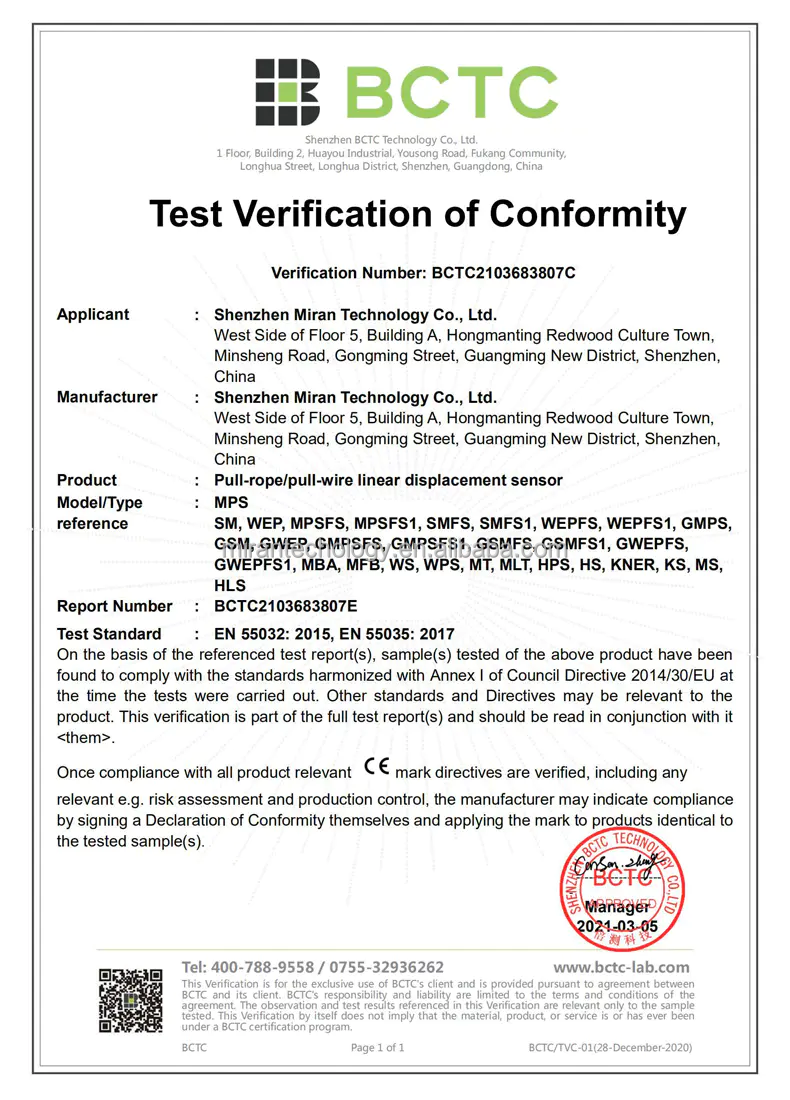

Certifications
