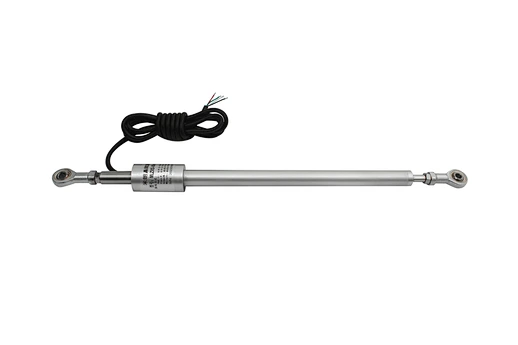

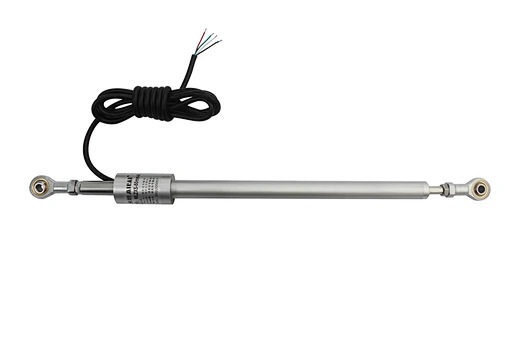

For MLZXS High Precision 0.25% Linearity Crack Sensor Displacement Vibration Wire Sensor 36V DC for Crack Detection

minimum order
1 piece
Quantity:
$68.00 - $88.00 / piece
Contact Now
add to cart
  • Linearity:±0.25%
  • Communication Interface:Cable
  • Theory:Vibration Wire Displacement Sensor
  • Usage:Crack measuring
  • Type:Linear Displacement Sensor
  • Mounting Type:Bracket installation
  • Manufacturer Part Number:MLZXS
  • Brand Name:MIRAN
  • Voltage - Supply:≤36V DC
  • Linear Range:0.25%FSR
  • Description:Vibration Wire Displacement Sensor
  • Place of Origin:Guangdong, China
  • Series:MLZXS
  • Features:High precision and accuracy
  • Selling Units:Single item
  • Single package size:40X10X10 cm
  • Single gross weight:1.5 kg

Products Description


The vibrating wire crack meter is a kind of non-electrical measurement sensor that is widely valued and widely used at home and abroad. It includes a heat-treated vibrating wire detection element, one end is connected with the vibrating wire, and the other end is connected with a sliding rod and is formed by a stress-relieved spring. As the sliding rod is pulled, the spring begins to stretch and causes the tension of the vibrating wire to increase, and the vibration frequency of the steel wire changes accordingly, and the tension is proportional to the elongation of the spring. Therefore, the change of displacement can be realized by measuring the tension of the steel string, that is, the change of the vibration frequency of the steel string. Since the vibrating wire sensor directly outputs the natural vibration frequency signal of the vibrating wire, it has the characteristics of strong anti-interference ability, little influence by electrical parameters, little zero drift, little influence by temperature, stable and reliable performance, vibration resistance, long life and so on.


Product Paramenters


Model
MLZXS-XXXmm-X
Measuring range
25,50,100,150,200mm
Sensitivity
<0.025%FSR
Non-linearity
0.25%FSR
Temperature zero drift
<0.05%FSR/℃
Stability
<0.2%FSR/year
Frequency range
1600~2700hz
Temperature range
-20°C~+80°C
Coil resistance
180Ω±10Ω
Thermistor
It is about 3000Ω at 25℃
IP grade
IP65
