Miran Multi-channel Draw Wire Displacement Sensor Real-time Acquisition and Monitoring System
2026-08-24
Today, the main content is to introduce the video demonstration of the draw wire displacement sensor monitoring system. This system consists of a draw wire displacement sensor and the corresponding acquisition software. It supports real-time displacement monitoring, data recording, alarm functions, and customizable development.
Key content of the video:
I. Hardware Section
1. Sensor Type
• Non-contact type (based on magnetic induction principle, highly resistant to interference)
1. Sensor Type
• Non-contact type (based on magnetic induction principle, highly resistant to interference)
• Contact type (potentiometer structure)
• Technical Parameters: Measurement range 800mm, RS485 output (Modbus protocol)
Measurement range 1000mm, potentiometer principle
2. System scalability
• Supports multi-sensor networking, and achieves 16-channel synchronous acquisition through the RS485 bus
• Supports multi-sensor networking, and achieves 16-channel synchronous acquisition through the RS485 bus
II. Software Functions
1. Core Module

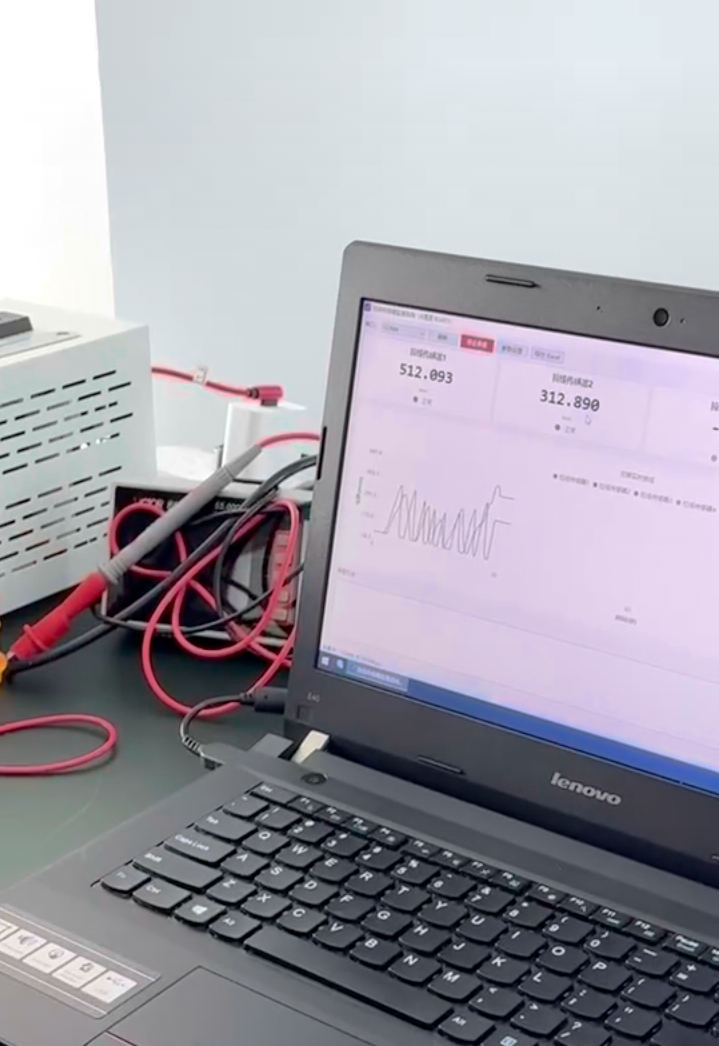

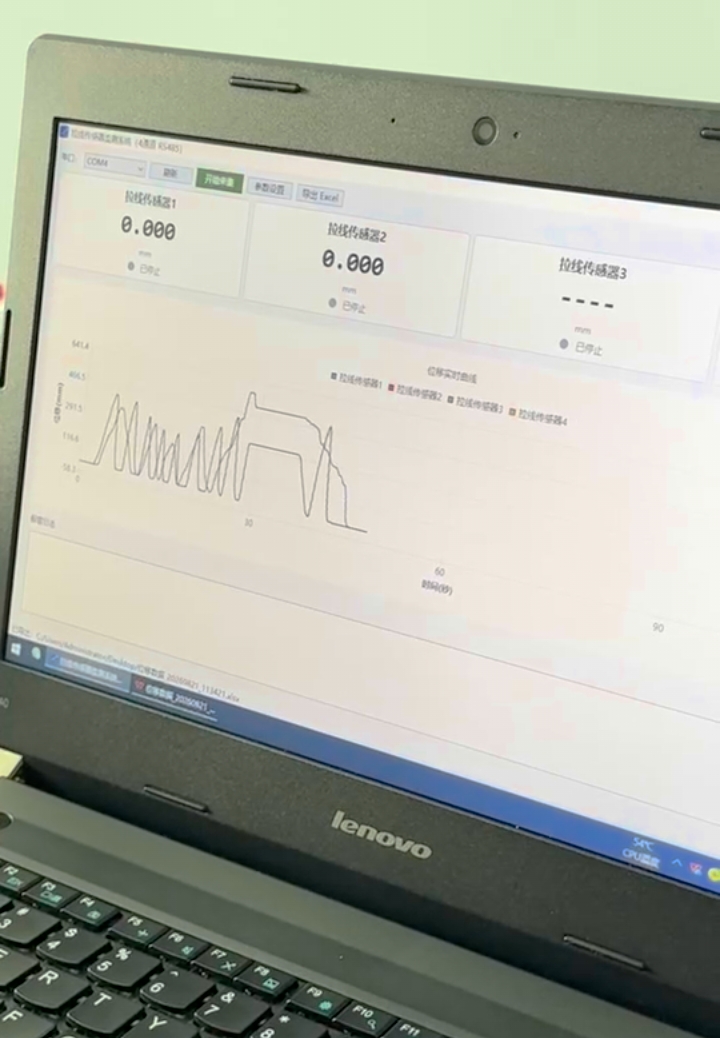

• Real-time dual-channel monitoring interface (dynamic curves + numerical display)
1. Core Module
• Real-time dual-channel monitoring interface (dynamic curves + numerical display)
• Intelligent alarm: Threshold-triggered color warnings (red/blue for separate channels) and audio-visual alerts

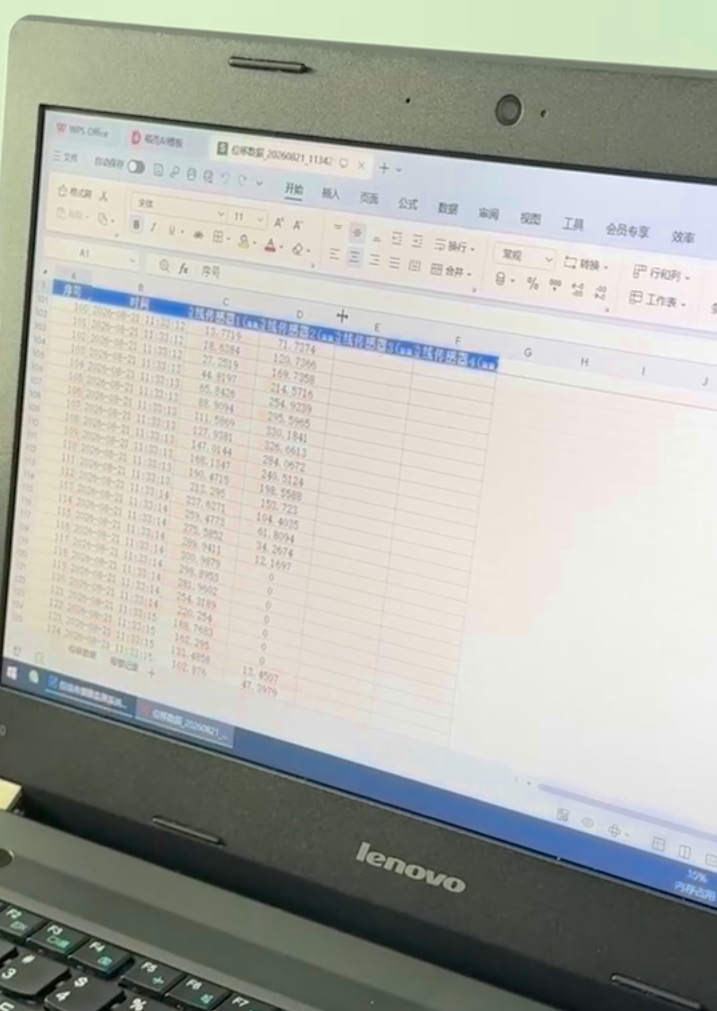

• Data storage: Export in Excel format, including complete time-displacement data sets
2. Advanced Features
• Open API interface, supporting secondary development (such as PLC linkage control)
• Open API interface, supporting secondary development (such as PLC linkage control)
Ⅲ. Typical Applications
• Position Feedback of Industrial Manipulators
• Position Feedback of Industrial Manipulators
• Bridge Deformation Monitoring
• Automatic Line Positioning and Calibration
For more information about this system, please feel free to contact me at any time.
Emali:sales8@miran-tech.com.
Phone:+86 189 3885 6990
