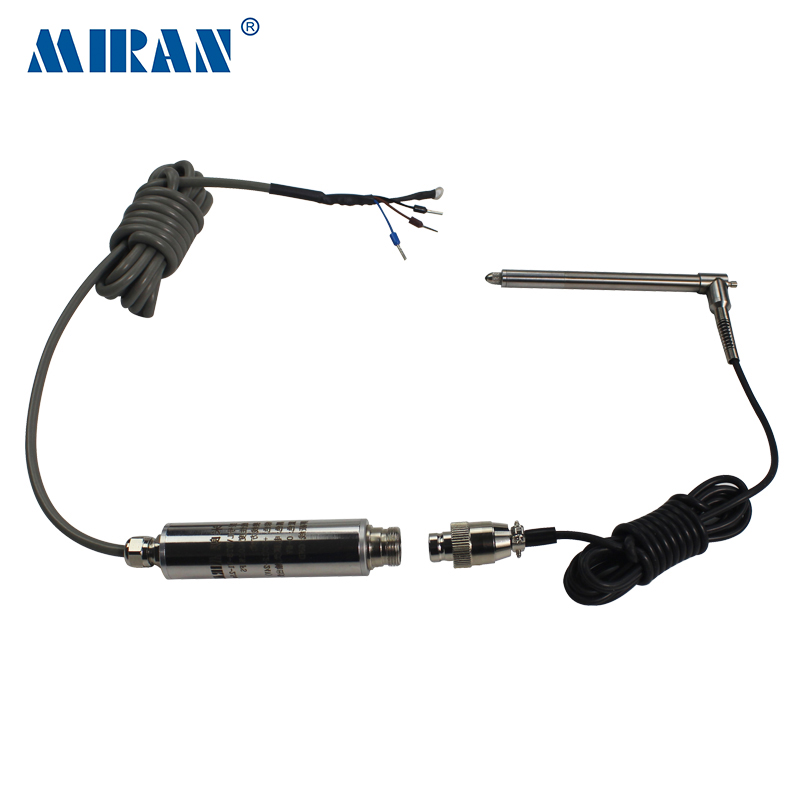

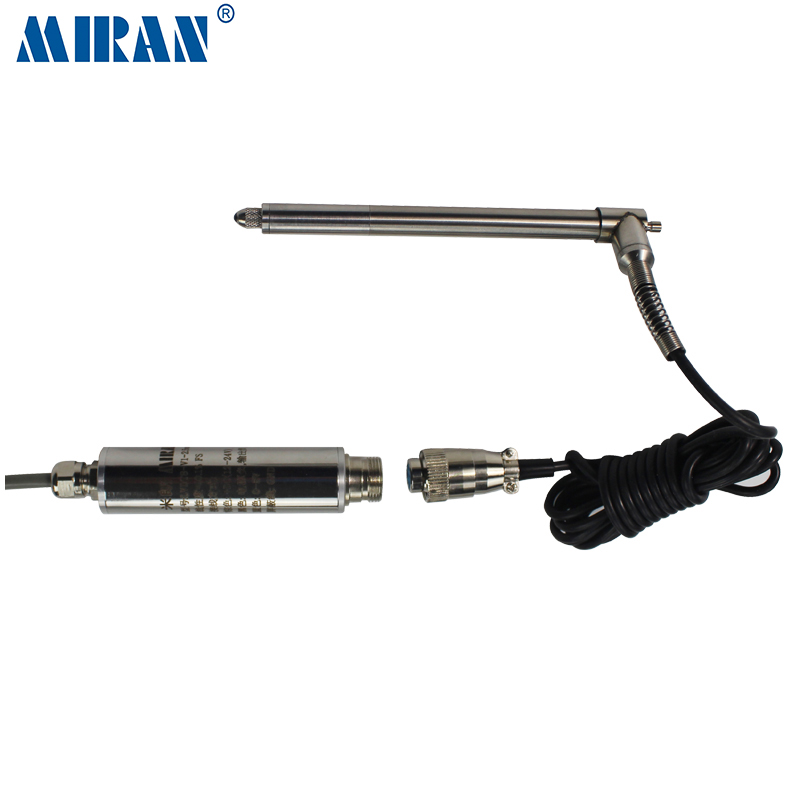

Miran LVDT8Q Displacement Sensor Pneumatic High-precision LVDT Displacement Sensor for Positioning Machines and Tools
minimum order
1 piece
Quantity:
$255.00 - $335.00 / piece
- Linearity:±0.1%
- Output:Analog
- Communication Interface:RS485
- Theory:LVDT Sensor
- Usage:Industrial automation attitude control
- Type:Linear Displacement Sensor
- Mounting Type:Bracket installation
- Manufacturer Part Number:LVDT8Q
- Brand Name:MIRAN
- Voltage - Supply:≤36V DC
- Linear Range:0.1%
- Description:LVDT8 LInear Position Sensor
- Place of Origin:Guangdong, China
- Series:LVDT8Q
- Features:High precision and accuracy
- Rotation Angle - Electrical, Mechanical:High precision machine
- Material:stainless steel
- Selling Units:Single item
- Single volume:0 cm³
- Single gross weight:0.0 kg
Products Description
Differential transformer displacement sensor (LVDT) can be widely used in aerospace, machinery, construction, textile, railway, coal, metallurgy, plastics, chemical industry and scientific research institutions and other national economy all walks of life, used to measure elongation, vibration, object thickness, expansion and other high-tech products.
Pneumatic displacement sensors have excellent performance and are suitable for high precision and high repeatability measurements in quality control and metrology applications. The measuring head is made of silicon nitride ceramic ball with high hardness and wear-resistant material, and the moving part of the measuring shaft is made of precision guide rail. Pneumatic displacement sensor external transmitter can output standard DC signal, using a convenient single power supply +12 ~ 30V DC power supply, electronic circuit sealed in 304 stainless steel tube, can work in wet and dust and other harsh environment. The output signal is a standard 0-5V,0-10V, 4-20mA or RS485 output that can be used by a computer or PLC.
Pneumatic displacement sensors have excellent performance and are suitable for high precision and high repeatability measurements in quality control and metrology applications. The measuring head is made of silicon nitride ceramic ball with high hardness and wear-resistant material, and the moving part of the measuring shaft is made of precision guide rail. Pneumatic displacement sensor external transmitter can output standard DC signal, using a convenient single power supply +12 ~ 30V DC power supply, electronic circuit sealed in 304 stainless steel tube, can work in wet and dust and other harsh environment. The output signal is a standard 0-5V,0-10V, 4-20mA or RS485 output that can be used by a computer or PLC.

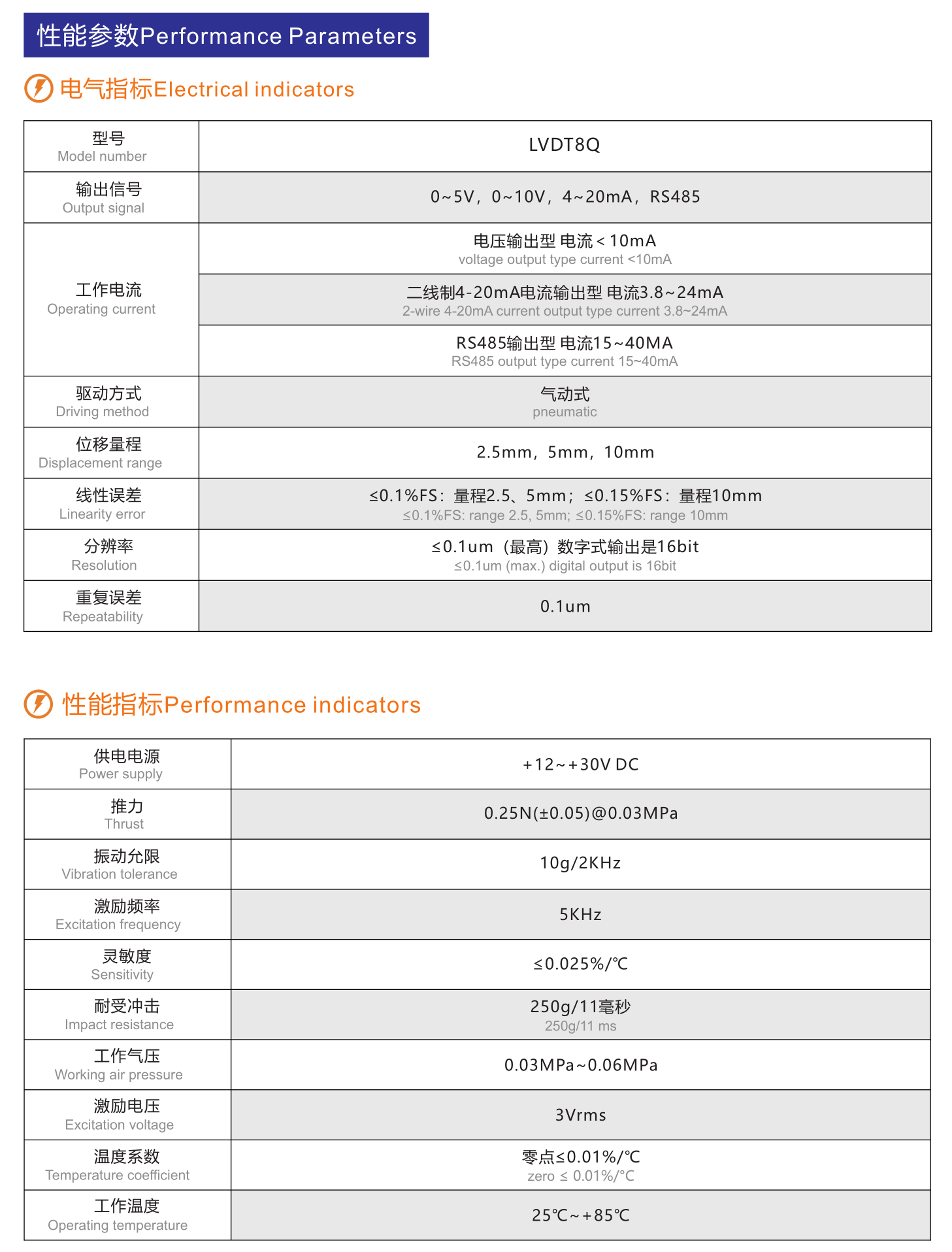

Product Paramenters
Drive mode | Pneumatic type |
Displacement range | 5mm,10mm |
Output signal | 0～5V, 0～10V,4～20mA，RS485 |
Resolution | ≤0.1um(the highest） The digital output is 16bit |
Linearity error | ≤±0.25%FS |
Repetitive error | 0.1um |
Power supply | +12～30V DC |
Working current | Voltage output type Current ＜10mA |
Two wire 4 ~ 20mA output type Current 3.8～24mA | |
RS485 output type Current 15～40mA | |
Impulse withstand | 250g/11ms |
Thrus | 0.25N（±0.05）@0.03MPa |
Working air pressure | 0.03MPa～0.06MPa |
Vibration limit | 10g/2KHZ |
Excitation voltage | 3Vrms |
Excitation frequency | 5KHZ |
Temperature coefficient | Zero ≤0.01%/℃ |
Sensitivity | ≤0.025%/℃ |
Operating temperature |

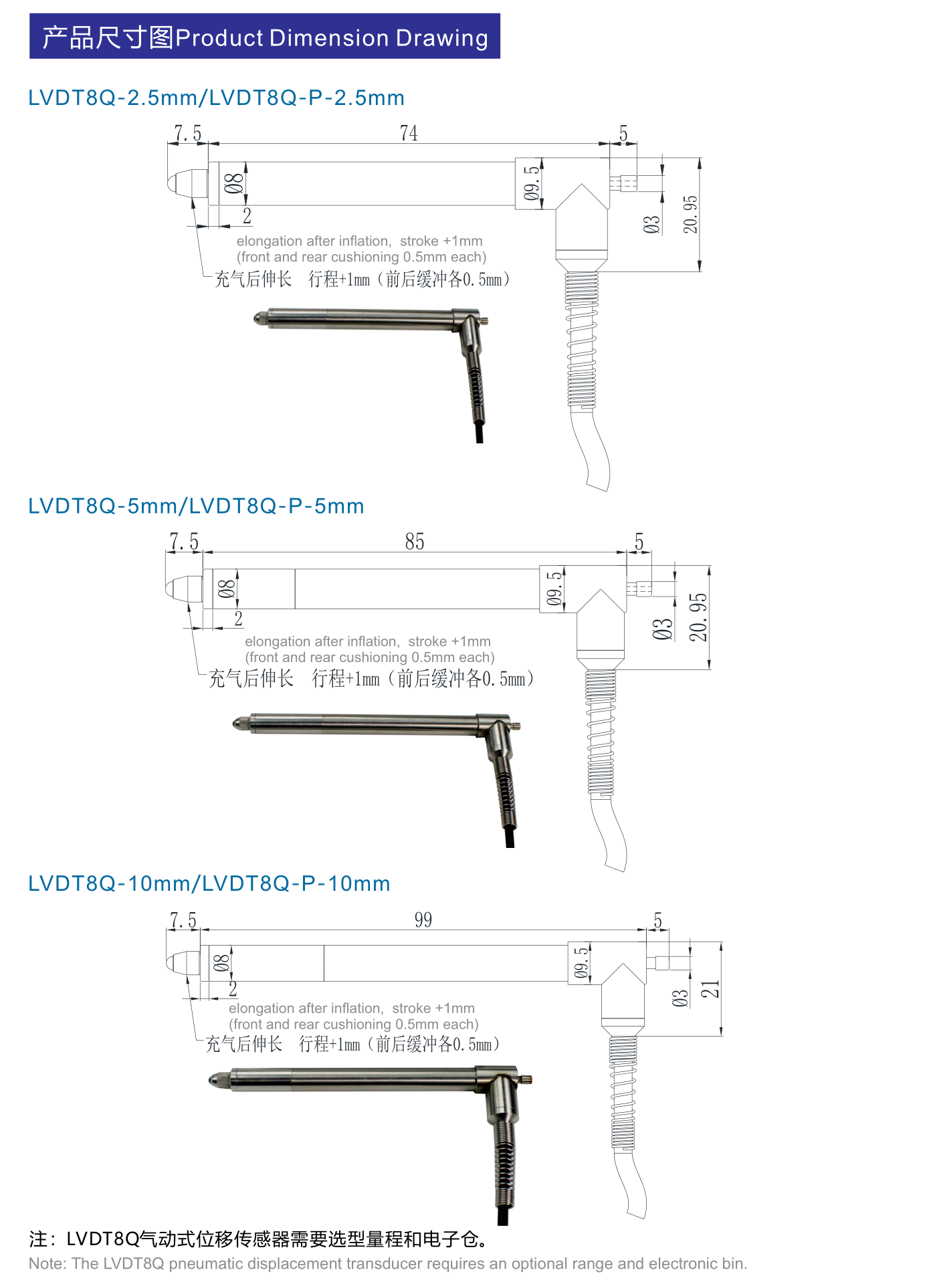

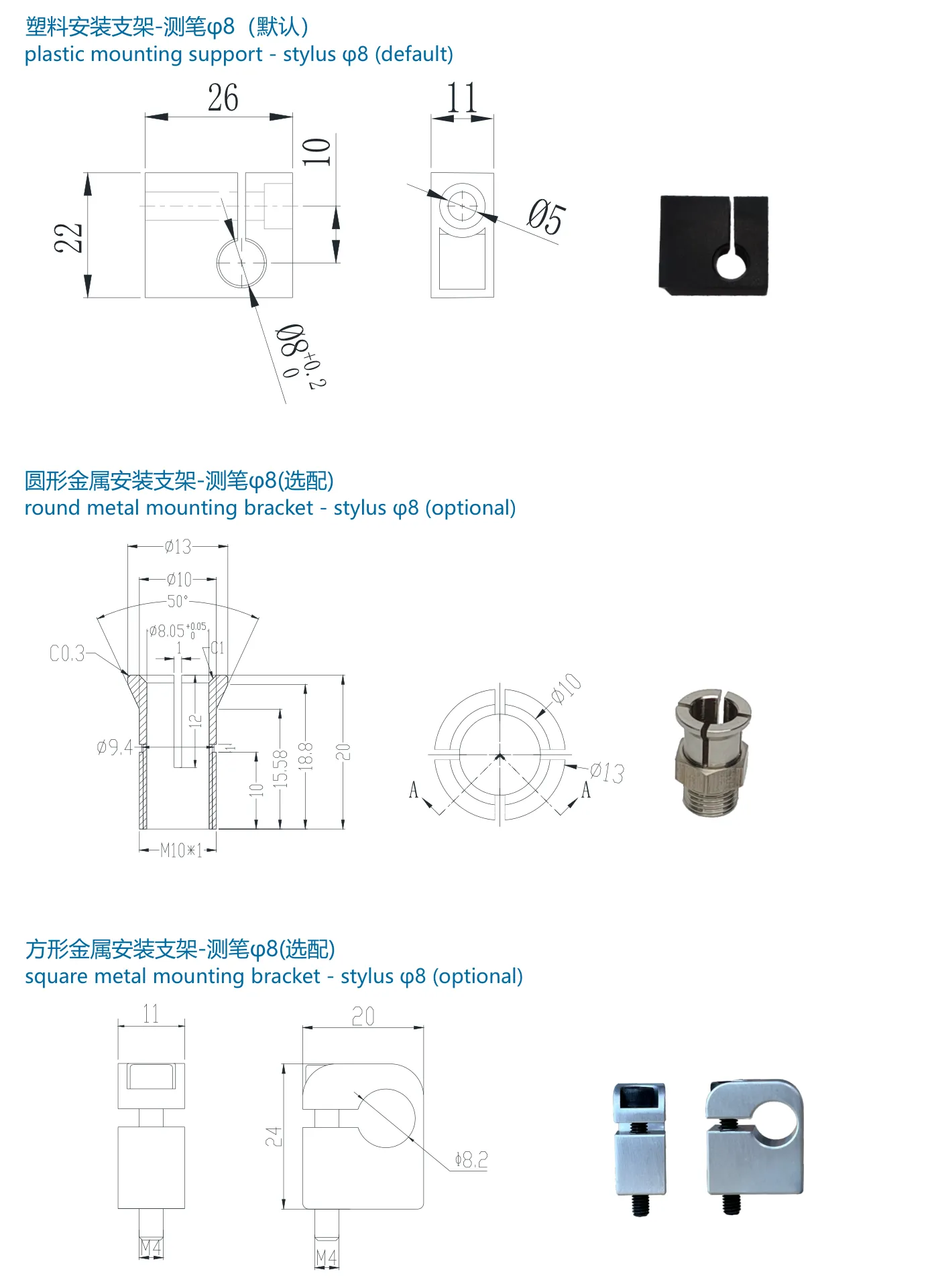

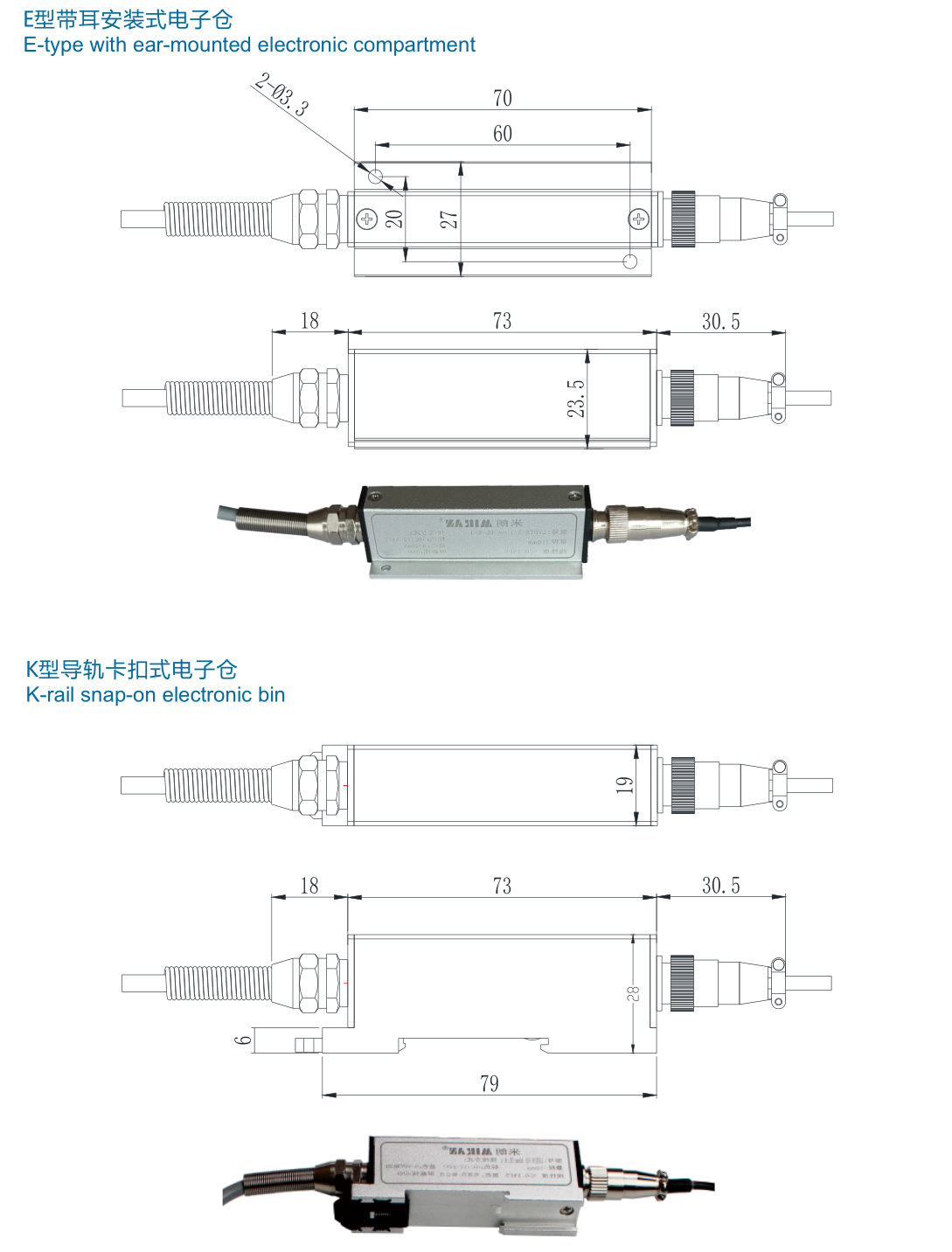

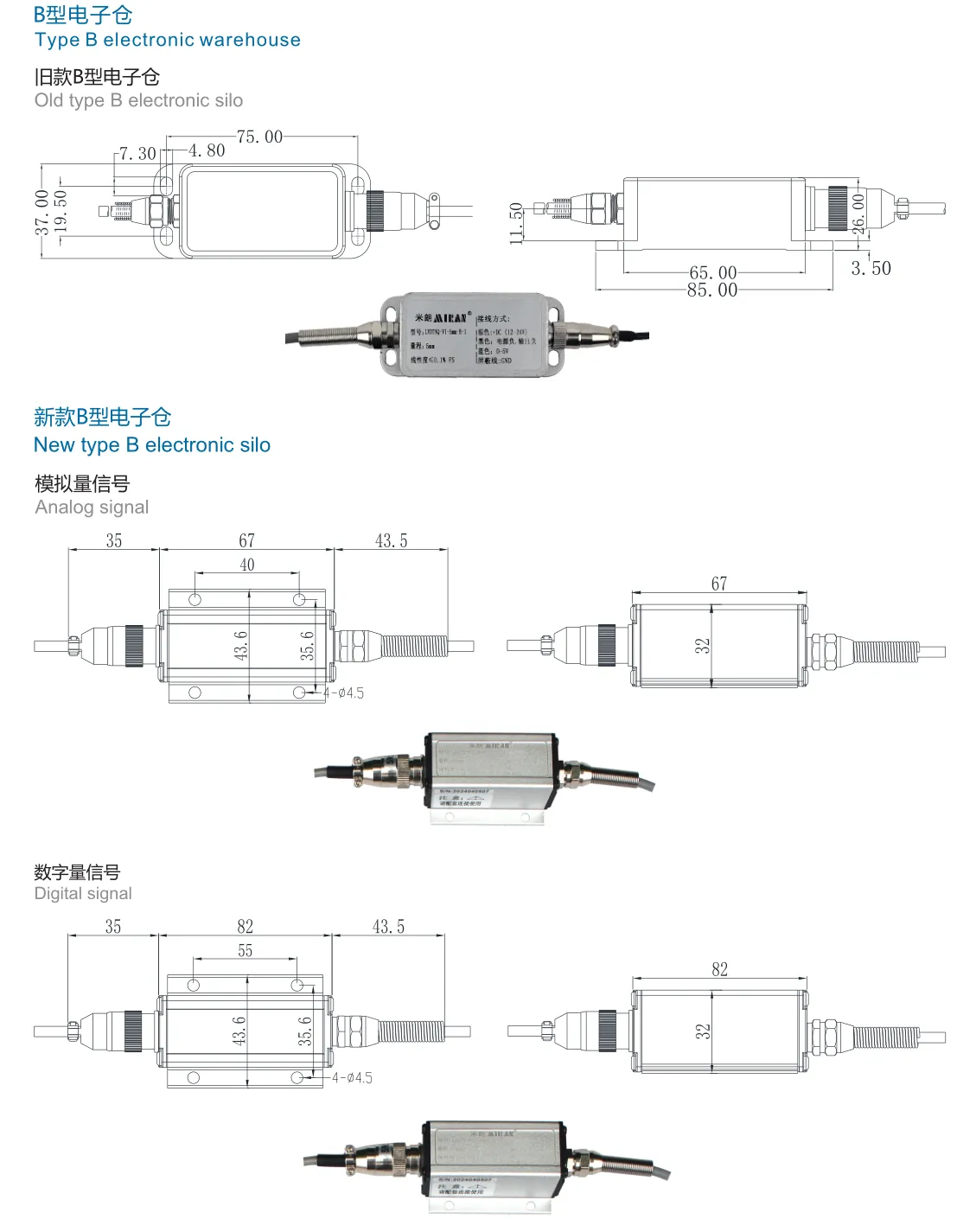

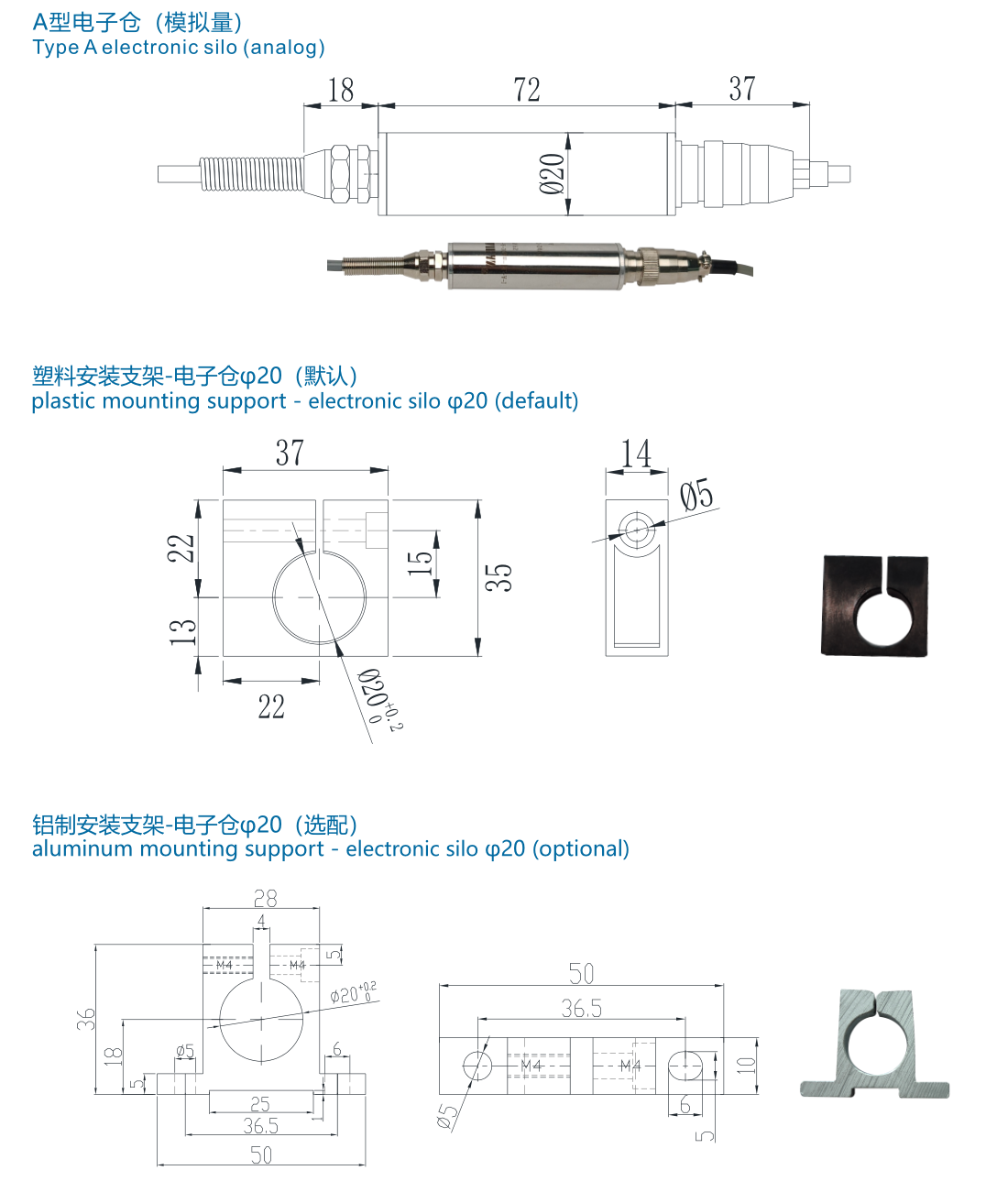

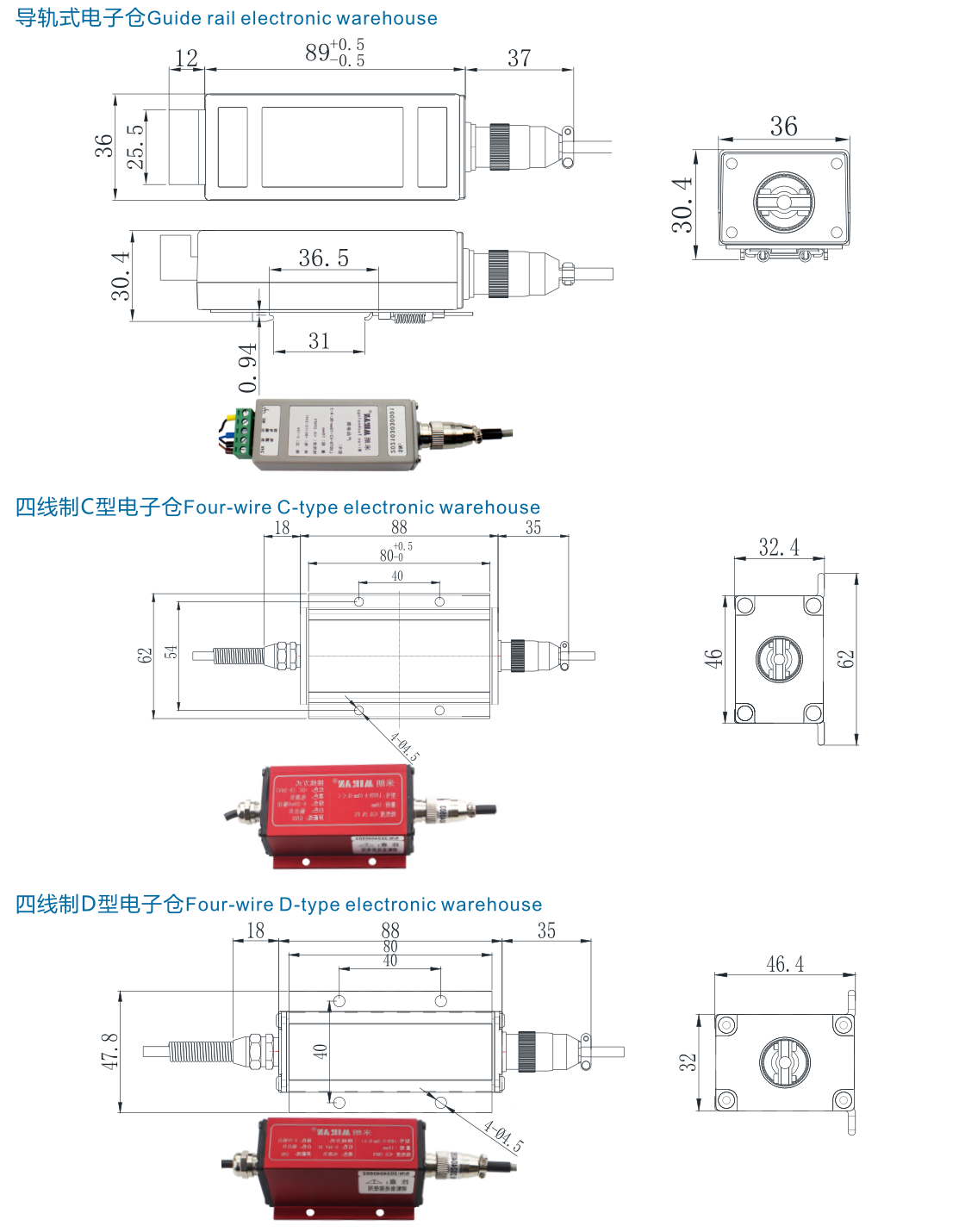

Details Images
Company Profile
Company Profile
projects are listed demonstration project of one-stop application plan for high-precision sensors of Ministry of Industry and Information Technology of China. MIRAN Technology is also the State-level “little giants” enterprise-specialized and sophisticated enterprises that produce new and unique products, State-level high-tech enterprise.
Our development direction is: technology innovation as the core, customer demand as the guidance, we will always be committed to providing customers with one-stop solutions for products and services in the fields of measurement and control, such as displacement, liquid level, material level, angle, inclination, pressure and also the display controller instruments.
MIRAN Technology has two companies, Shenzhen Miran Technology Co., Ltd and Hubei Miran Technology Co., Ltd. Shenzhen Miran Technology Co., Ltd was founded in 2003, set up in the core area of Guangming District, Shenzhen. In our factory we have the engineering department, R&D center, manufacturing department, testing center, after-sales service department, marketing department. We also have many direct sales offices, agents and distributors. All of these ensure us could provide thoughtful and timely service to our customers. Miran company has more than 20 years experience of
research and development, production and operation, now has become a mature technology manufacturers that with many high-tech personnel and advanced equipment and dozens of patents sensor and lubricating system. “MIRAN” brand series of products have been widely used for many kinds of machinery and equipment, automation control, Internet of Things and other measurement and control field. At present, there are hundreds of thousands displacement sensors are sold around the world every year.
Our main products are: Potentiometer/resistive displacement sensor (electronic ruler), draw wire displacement sensor, magnetostrictive displacement sensor, magnetostrictive liquid level sensor (level gauge measurement and control system), and hall magnetically sensitive non-contact angle sensor and supporting V/A conversion module, LVDT displacement sensor, inductive frequency modulation displacement sensor, gap displacement sensor, vibrating wire crack meter, eddy current displacement sensor, ultrasonic sensor, radar-type level meters, hydrostatic level, magnetic grid sensor, tilt sensor, inclinometer, display controller, intelligent inclinometer, three-pulley tension sensor, wheel load cell
sensor, wireless transmission module, display controller and related application products. Also include the automatic/semi-automatic lubricating oil pump and its accessories.
sensor, wireless transmission module, display controller and related application products. Also include the automatic/semi-automatic lubricating oil pump and its accessories.

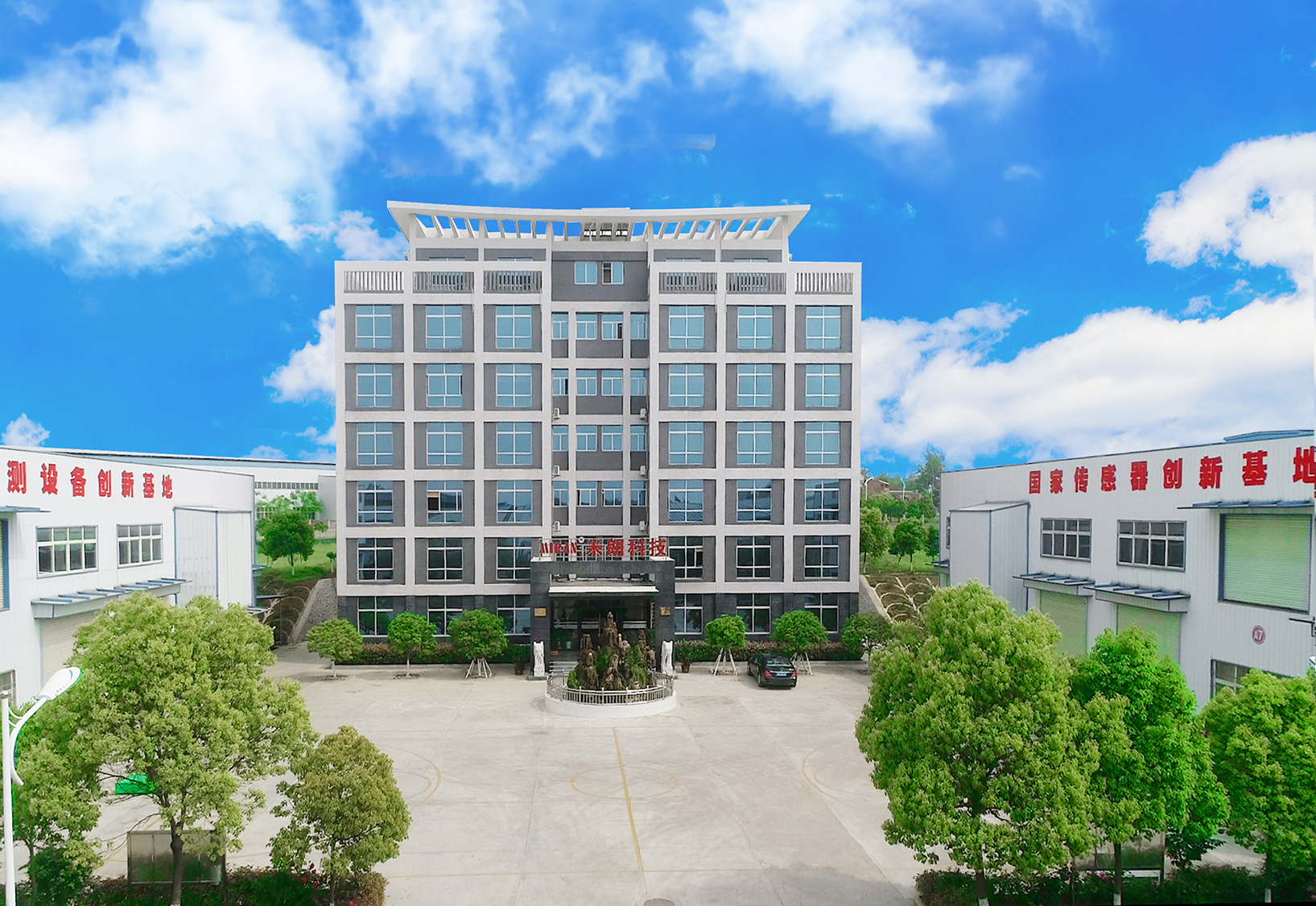

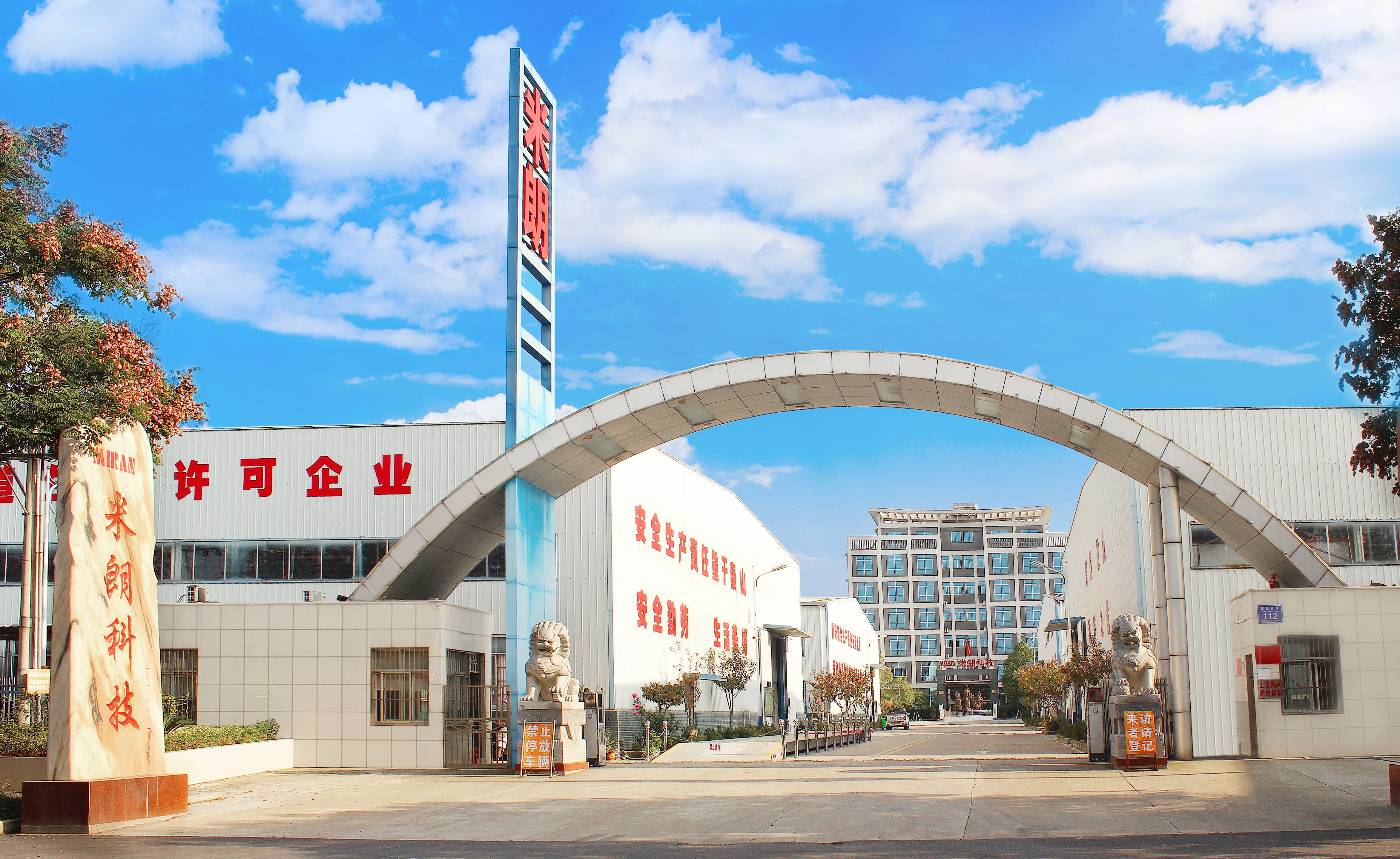

In order to meet the growing needs of customers, our company increased investment and set up the Miran Industrial Park with a total area of more than 50 acres in 2007. We established the Hubei Miran Technology Co., Ltd(Zaoyang City Miran Science & Techology Co.Ltd). The planned modern workshop covers an area of 200,000 square meters and has been built 60,000 square meters, the introduction modern manufacturing and testing equipment more than 3,000 sets.Beautiful environment,standardized plant, sophisticated intelligent equipment, perfect production line provide the basis for product quality and large-scale mass production. The industrial park has the R&D center, mold workshop, CNC machining workshop, printing production line, dust-free workshop, production and assembly workshop, testing room and so on.
Each product is produced with professional production, testing process, to ensure the quality of
the product .
Each product is produced with professional production, testing process, to ensure the quality of
the product .
The company has strong technical reserves, standardized management, pay attention to intellectual property protection, and has obtained 92 patents that related to sensor inventions and utility models. Among them, there are 20 invention patents, and the reserve of technical force has cultivated new growth points for the strategic development of enterprises. Site management is quality assurance to customers. The company increase on-site management efforts to provide high-quality products for customers, and create a good production environment for employees. The company has obtained ISO9001 International Quality System Certification. All the design and production is according to the international quality certification standards.MIRAN series of products won the famous trademark of Hubei Province. The company won
Hubei Province “Contract and Keeping Promises” enterprises.
Hubei Province “Contract and Keeping Promises” enterprises.
The company increased the information construction,keep up with the pace of the times, and increase training of Internet talents to promote the MIRAN products and talent quality always in a leading position in the world. After more than 20 years of technological precipitation and innovation, more than 20 years of market verification, many MIRAN product’s performance has surpassed foreign brands in many aspects and has won a number of national utility model patent
certificates. MIRAN has cast the position of the leader of the domestic displacement sensor
industry with its strength. In the present world, science and technology are advancing by leaps and bounds, but we
strive for excellence, strive to do well in our own professional field of products. We operate with integrity, and constantly explore advanced ideas. We would like to do our best to contribute a little to achieve the goal of the realization of made in China to the world and help the China’s economy keep moving for ward.
certificates. MIRAN has cast the position of the leader of the domestic displacement sensor
industry with its strength. In the present world, science and technology are advancing by leaps and bounds, but we
strive for excellence, strive to do well in our own professional field of products. We operate with integrity, and constantly explore advanced ideas. We would like to do our best to contribute a little to achieve the goal of the realization of made in China to the world and help the China’s economy keep moving for ward.
Recommend Products
Exhibition

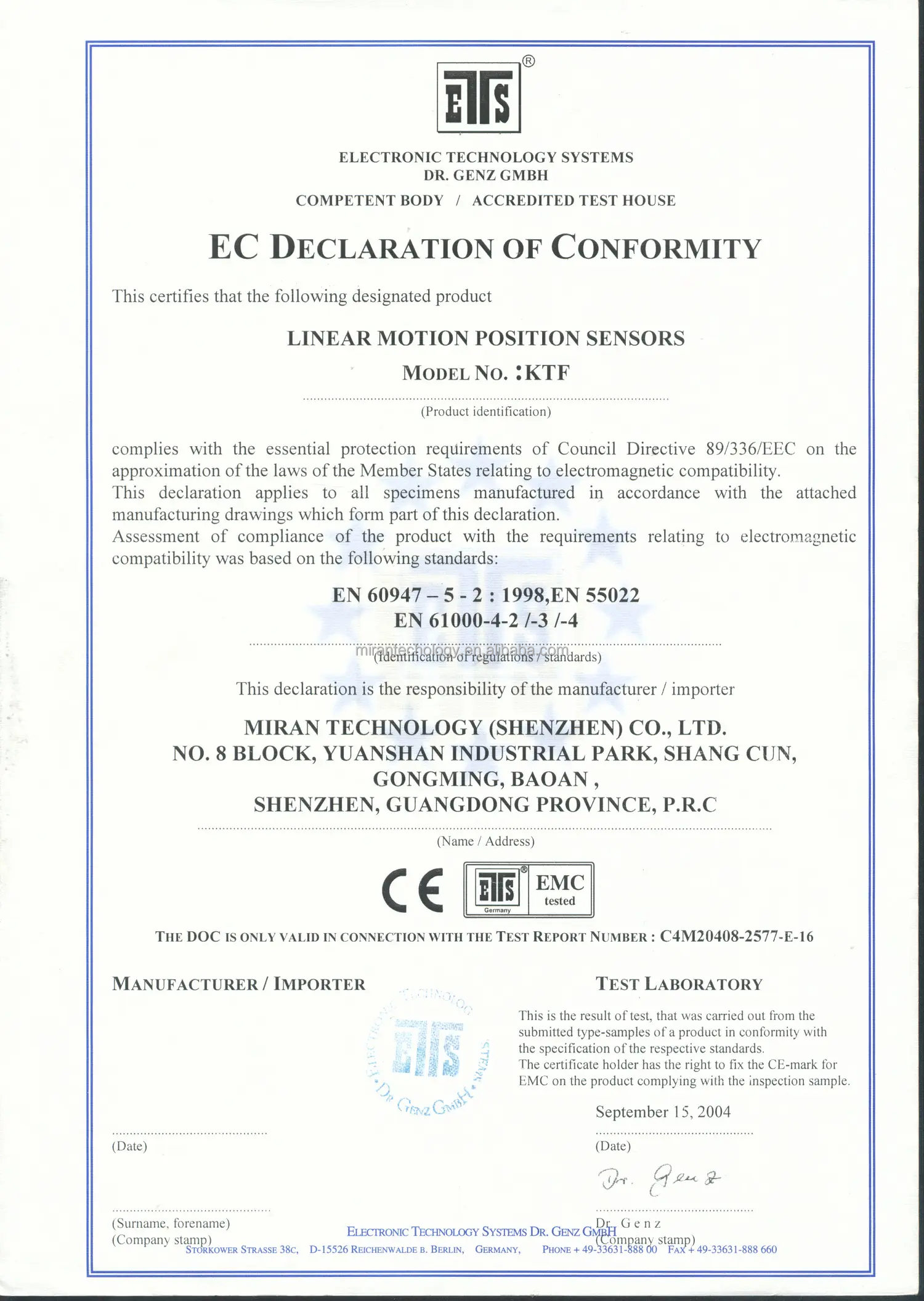

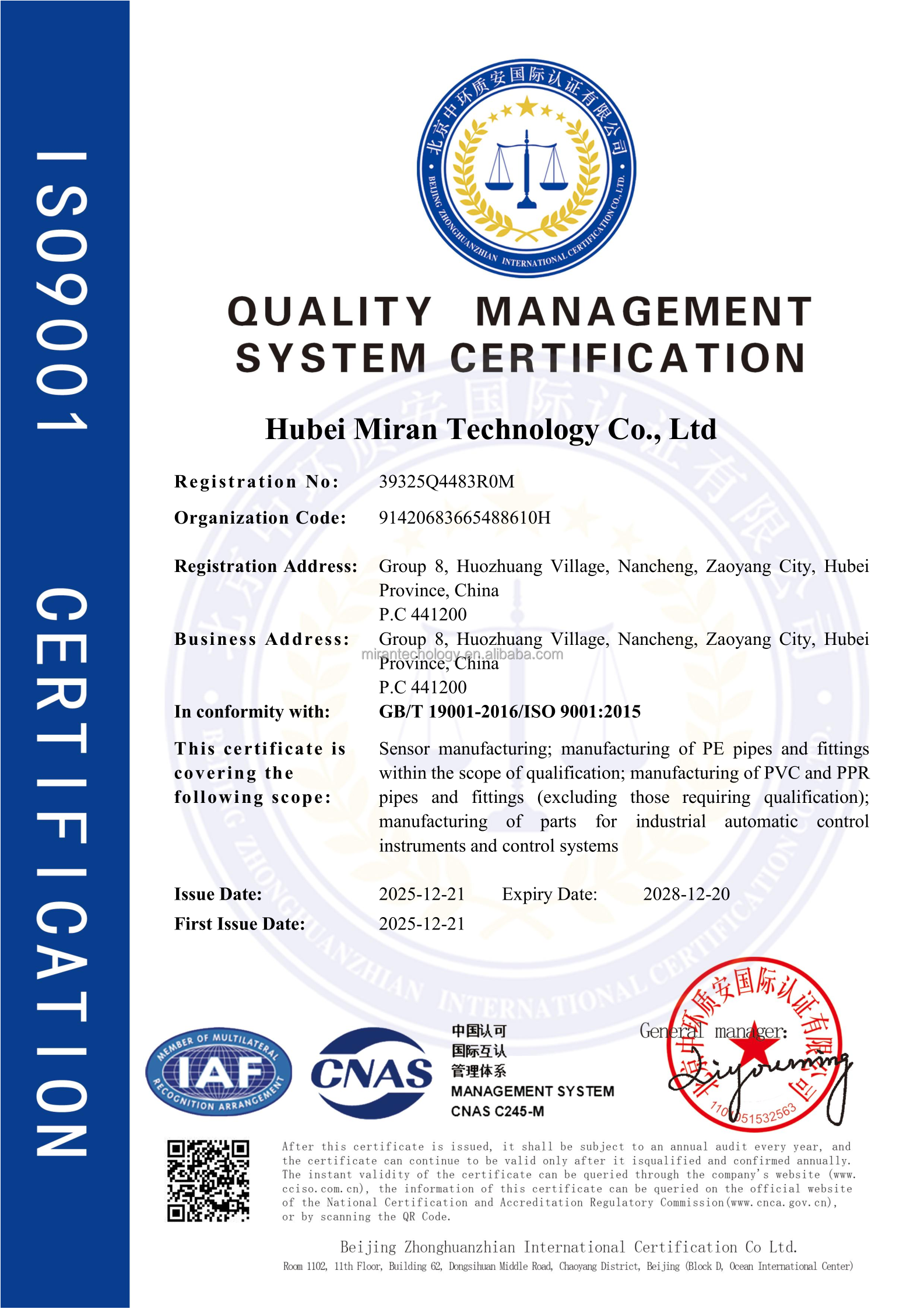

Certifications
